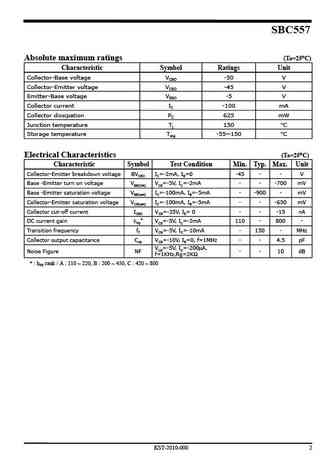

SBC557SemiconductorSemiconductorPNP Silicon TransistorDescriptions General purpose application Switching applicationFeatures High voltage : VCEO=-45V Complementary pair with SBC547Ordering InformationType NO. Marking Package Code SBC557 SBC557 TO-92Outline Dimensions unit : mm3.450.14.50.12.250.10.40.022.060.11.27 Typ.2.54 Typ.1 2 3PIN Connections1. Collector2. Base3. Emitter KST-2010-000 14.50.114.00.400.381.200.1 SBC557Absolute maximum ratings (Ta=25C)Characteristic Symbol Ratings UnitCollector-Base voltage VCBO -50 VCollector-Emitter voltage VCEO -45 VEmitter-Base voltage VEBO -5 VCollector current IC -100 mACollector dissipation PC 625 mWJunction temperature Tj 150 CStorage temperature Tstg -55~150 CElectrical Characteristics (Ta=25
