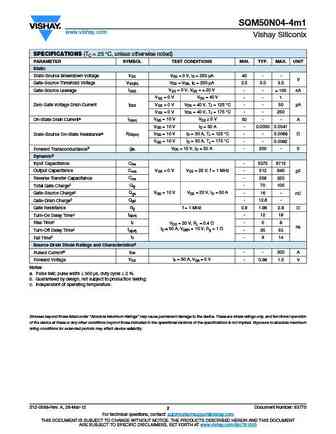

SQM50N04-4m1www.vishay.comVishay SiliconixAutomotive N-Channel 40 V (D-S) 175 C MOSFETFEATURESPRODUCT SUMMARY TrenchFET Power MOSFETVDS (V) 40 Package with Low Thermal ResistanceRDS(on) () at VGS = 10 V 0.0041 AEC-Q101 QualifieddID (A) 50 100 % Rg and UIS TestedConfiguration Single Material categorization:For definitions of compliance please seewww.vishay.com/doc?99912 TO-263DGDG SSTop View N-Channel MOSFETORDERING INFORMATIONPackage TO-263Lead (Pb)-free and Halogen-free SQM50N04-4m1-GE3ABSOLUTE MAXIMUM RATINGS (TC = 25 C, unless otherwise noted)PARAMETER SYMBOL LIMIT UNITDrain-Source Voltage VDS 40V Gate-Source Voltage VGS 20TC = 25 C 50Continuous Drain Currenta IDTC = 125 C 50Continuous Source Current (Diode Conduction)a IS 50 APulsed Drain Currentb IDM 200Single Pulse Avalanche
