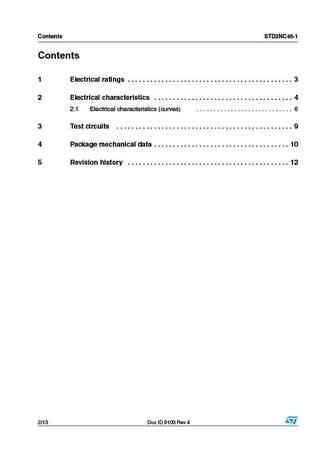

STD2NC45-1N-channel 450 V, 4.1 , 1.5 A, IPAKSuperMESH Power MOSFETFeatures Extremely high dv/dt capability 100% avalanche tested Gate charge minimized New high voltage benchmark321ApplicationIPAK Switching applicationsDescriptionThe SuperMESH series is obtained through an extreme optimization of STs well established strip-based PowerMESH layout. In addition to Figure 1. Internal schematic diagrampushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage Power MOSFETs including revolutionary MDmesh products.Table 1. Device summaryOrder code Marking Package PackagingSTD2NC45-1 D2NC45 IPAK TubeApril 2009 Doc ID 9103 Rev 4 1/13www.st.com 13Contents STD2NC45-1Con
