Скачать даташит для svf10n65f_svf10n65t:

svf10n65f_svf10n65tsvf10n65f_svf10n65t

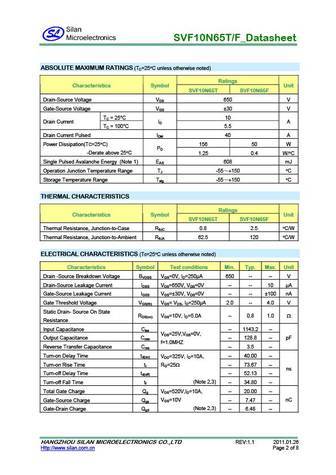

SVF10N65T/F_Datasheet 10A, 650V N-CHANNEL MOSFET GENERAL DESCRIPTION SVF10N65T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. Theimproved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM motor drivers. FEATURES 10A,650V,RDS(on)(typ.)=0.80@VGS=10V Low gate charge Low Crss Fast switching Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. Package Marking Material Packing SVF10N65T TO-220-3L SVF10N65T Pb free TubeSVF10N65F TO-220F-3L SVF10
