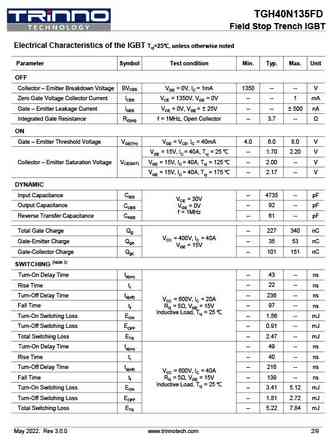

TGH40N135FDField Stop Trench IGBTFeatures 1350V Field Stop Trench IGBT Technology TO-247 High Speed Switching Low Conduction Loss Positive Temperature Coefficient Easy Parallel Operation 175 Operating Temperature RoHS Compliant JEDEC QualificationApplicationsG C E Induction Heating Inverterized microwave ovens UPS Solar InverterDevice Package Marking RemarkTGH40N135FD TO-247 TGH40N135FD RoHSAbsolute Maximum Ratings Parameter Symbol Value UnitCollector-Emitter Voltage VCES 1350 VGate-Emitter Voltage VGES 25 VTC = 25 80 AContinuous Collector Current ICTC = 100 40 APulsed Collector Current (Note 1) ICM 160 ADiode Continuous Forward Current TC = 100 IF 40 ADiode Pulsed Current (Note 2) IFM 160 ATC = 25 625 WPower Dissipation PDTC = 100 313 WOperating Junction Temper
