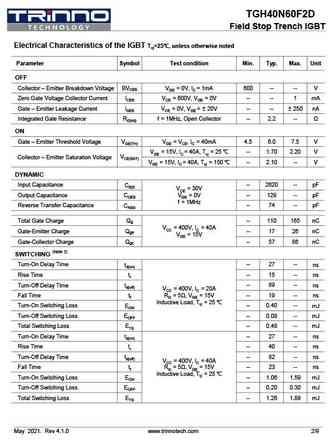

TGH40N60F2DField Stop Trench IGBTFeaturesTO-247 600V Field Stop Trench IGBT Technology Low Conduction Loss Positive Temperature Coefficient Easy Parallel Operation RoHS Compliant JEDEC QualificationG C EApplicationsUPS, Welder, Inverter, SolarDevice Package Marking RemarkTGH40N60F2D TO-247 TGH40N60F2D RoHSAbsolute Maximum Ratings Parameter Symbol Value UnitCollector-Emitter Voltage VCES 600 VGate-Emitter Voltage VGES 20 VTC = 25 80 AContinuous Collector Current IcTC = 100 40 APulsed Collector Current (Note 1) ICM 120 ADiode Continuous Forward Current TC = 100 IF 20 ADiode Pulsed Forward Current (Note 2) IFM 200 ATC = 25 236 WPower Dissipation PDTC = 100 94 WOperating Junction Temperature Tvj -55 ~ 150 Storage Temperature Range TSTG -55 ~ 150 Maximum lead temperature for soldering
