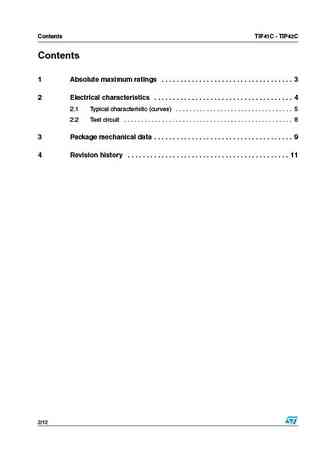

TIP41CTIP42CComplementary power transistors .Features Complementary PNP-NPN devices New enhanced series High switching speed hFE grouping hFE improved linearity321ApplicationsTO-220 General purpose circuits Audio amplifierFigure 1. Internal schematic diagram Power linear and switchingDescriptionThe TIP41C is a base island technology NPN power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications. The complementary PNP type is TIP42CTable 1. Device summaryOrder code Marking Package PackagingTIP41C RTIP41C (Note 1 on page 4) TIP41C O TO-220 TubeTIP41C YTIP42C RTIP42C (Note 1 on page 4) TIP42C O TO-220 TubeTIP42C YNovember 2007 Rev 2 1/12www.st.com 12Contents TIP41C - TIP42CContents1 Absolute maximum ratings . . . . . . . . .
