AOB12T60P MOSFET - описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник
Наименование прибора: AOB12T60P
Тип транзистора: MOSFET
Полярность: N
Pdⓘ - Максимальная рассеиваемая мощность: 250 W
|Vds|ⓘ - Предельно допустимое напряжение сток-исток: 600 V
|Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 30 V
|Vgs(th)|ⓘ - Пороговое напряжение включения: 5 V
|Id|ⓘ - Максимально допустимый постоянный ток стока: 12 A
Tjⓘ - Максимальная температура канала: 150 °C
Qgⓘ - Общий заряд затвора: 50 nC
trⓘ - Время нарастания: 72 ns
Cossⓘ - Выходная емкость: 71 pf
Rdsⓘ - Сопротивление сток-исток открытого транзистора: 0.52 Ohm
Тип корпуса: TO-263
AOB12T60P Datasheet (PDF)

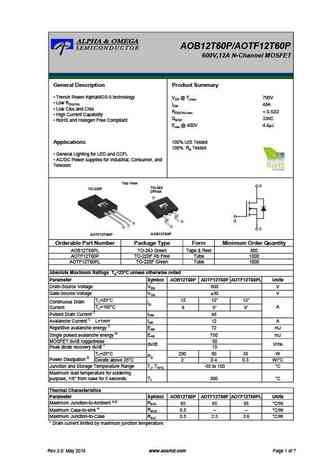

aob12t60p.pdf
AOB12T60P/AOTF12T60P600V,12A N-Channel MOSFETGeneral Description Product Summary Trench Power AlphaMOS-II technology VDS @ Tj,max 700V Low RDS(ON) IDM 48A Low Ciss and Crss RDS(ON),max
aob12n65l.pdf
AOT12N65/AOTF12N65/AOB12N65650V, 12A N-Channel MOSFETGeneral Description Product Summary VDS750V@150The AOT12N65 & AOTF12N65 & AOB12N65 have beenfabricated using an advanced high voltage MOSFET ID (at VGS=10V) 12Aprocess that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aob12n50l.pdf
AOT12N50/AOB12N50/AOTF12N50500V, 12A N-Channel MOSFETGeneral Description Product Summary VDS600V@150The AOT12N50 & AOB12N50 & AOTF12N50 have beenfabricated using an advanced high voltage MOSFET ID (at VGS=10V) 12Aprocess that is designed to deliver high levels of RDS(ON) (at VGS=10V)

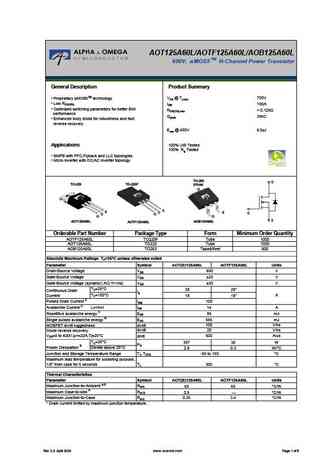

aob125a60l.pdf
AOT125A60L/AOTF125A60L/AOB125A60LTM600V, a MOS5 N-Channel Power TransistorGeneral Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 100A Optimized switching parameters for better EMI RDS(ON),max
aot12n65 aotf12n65 aob12n65.pdf
AOT12N65/AOTF12N65/AOB12N65650V, 12A N-Channel MOSFETGeneral Description Product Summary VDS750V@150The AOT12N65 & AOTF12N65 & AOB12N65 have beenfabricated using an advanced high voltage MOSFET ID (at VGS=10V) 12Aprocess that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aob12n60fd.pdf
AOT12N60FD/AOB12N60FD/AOTF12N60FD600V, 12A N-Channel MOSFETGeneral Description Product Summary VDS700V@150The AOT12N60FD/AOB12N60FD/AOTF12N60FD havebeen fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 12Aprocess that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aob12n50.pdf
AOT12N50/AOB12N50/AOTF12N50500V, 12A N-Channel MOSFETGeneral Description Product Summary VDS600V@150The AOT12N50 & AOB12N50 & AOTF12N50 have beenfabricated using an advanced high voltage MOSFET ID (at VGS=10V) 12Aprocess that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aob12n65l.pdf
isc N-Channel MOSFET Transistor AOB12N65LFEATURESDrain Current I =12A@ T =25D CDrain Source Voltage-: V =650V(Min)DSSStatic Drain-Source On-Resistance: R = 0.72(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpo
aob12n65.pdf
isc N-Channel MOSFET Transistor AOB12N65FEATURESDrain Current I =12A@ T =25D CDrain Source Voltage-: V =650V(Min)DSSStatic Drain-Source On-Resistance: R = 0.72(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos
aob12n60fd.pdf
isc N-Channel MOSFET Transistor AOB12N60FDFEATURESDrain Current I =12A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R = 0.65(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurp
aob12n50.pdf
isc N-Channel MOSFET Transistor AOB12N50FEATURESDrain Current I =12A@ T =25D CDrain Source Voltage-: V =500V(Min)DSSStatic Drain-Source On-Resistance: R = 0.52(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos
