Справочник MOSFET. AOB7S60



AOB7S60 MOSFET - описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник


   Наименование прибора: AOB7S60
   Тип транзистора: MOSFET
   Полярность: N
   Pdⓘ - Максимальная рассеиваемая мощность: 104 W
   |Vds|ⓘ - Предельно допустимое напряжение сток-исток: 600 V
   |Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 30 V
   |Vgs(th)|ⓘ - Пороговое напряжение включения: 3.9 V
   |Id|ⓘ - Максимально допустимый постоянный ток стока: 7 A
   Tjⓘ - Максимальная температура канала: 150 °C
   Qgⓘ - Общий заряд затвора: 8.2 nC
   trⓘ - Время нарастания: 13 ns
   Cossⓘ - Выходная емкость: 28 pf
   Rdsⓘ - Сопротивление сток-исток открытого транзистора: 0.6 Ohm
   Тип корпуса: TO-263

 Аналог (замена) для AOB7S60





AOB7S60 Datasheet (PDF)

 ..1. Size:288K  aosemi
 aob7s60.pdf

AOB7S60 AOB7S60

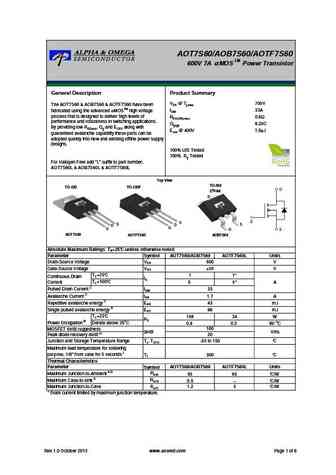

AOT7S60/AOB7S60/AOTF7S60TM600V 7A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT7S60 & AOB7S60 & AOTF7S60 have beenfabricated using the advanced MOSTM high voltage IDM 33Aprocess that is designed to deliver high levels of RDS(ON),max 0.6performance and robustness in switching applications. Qg,typ 8.2nCBy providing low R

 ..2. Size:255K  inchange semiconductor
 aob7s60.pdf

AOB7S60 AOB7S60

isc N-Channel MOSFET Transistor AOB7S60FEATURESDrain Current I =7A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R = 0.6(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpose a

 0.1. Size:287K  aosemi
 aob7s60l.pdf

AOB7S60 AOB7S60

AOT7S60/AOB7S60/AOTF7S60TM600V 7A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT7S60 & AOB7S60 & AOTF7S60 have beenfabricated using the advanced MOSTM high voltage IDM 33Aprocess that is designed to deliver high levels of RDS(ON),max 0.6performance and robustness in switching applications. Qg,typ 8.2nCBy providing low R

 8.1. Size:302K  aosemi
 aob7s65l.pdf

AOB7S60 AOB7S60

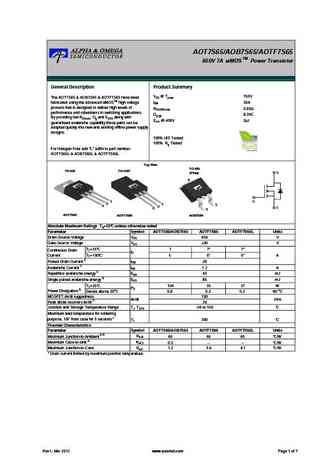

AOT7S65/AOB7S65/AOTF7S65TM650V 7A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 750VThe AOT7S65 & AOB7S65 & AOTF7S65 have beenfabricated using the advanced MOSTM high voltage IDM 30Aprocess that is designed to deliver high levels of RDS(ON),max 0.65performance and robustness in switching applications. Qg,typ 9.2nCBy providing low

 8.2. Size:302K  aosemi
 aob7s65.pdf

AOB7S60 AOB7S60

AOT7S65/AOB7S65/AOTF7S65TM650V 7A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 750VThe AOT7S65 & AOB7S65 & AOTF7S65 have beenfabricated using the advanced MOSTM high voltage IDM 30Aprocess that is designed to deliver high levels of RDS(ON),max 0.65performance and robustness in switching applications. Qg,typ 9.2nCBy providing low

 8.3. Size:202K  inchange semiconductor
 aob7s65l.pdf

AOB7S60 AOB7S60

INCHANGE Semiconductorisc N-Channel MOSFET Transistor AOB7S65LFEATURESHigh speed switchingLow gate input resistanceStandard level gate drive100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSPower supplySwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNI

 8.4. Size:255K  inchange semiconductor
 aob7s65.pdf

AOB7S60 AOB7S60

isc N-Channel MOSFET Transistor AOB7S65FEATURESDrain Current I = 7.0A@ T =25D CDrain Source Voltage-: V =650V(Min)DSSStatic Drain-Source On-Resistance: R =0.65(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos
