AOTF2618L
MOSFET - описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник
Наименование прибора: AOTF2618L
Тип транзистора: MOSFET
Полярность: N
Pdⓘ - Максимальная рассеиваемая мощность: 23.5
W
|Vds|ⓘ - Предельно допустимое напряжение сток-исток: 60
V
|Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 20
V
|Vgs(th)|ⓘ - Пороговое напряжение включения: 2.5
V
|Id|ⓘ - Максимально
допустимый постоянный ток стока: 22
A
Tjⓘ - Максимальная температура канала: 175
°C
trⓘ -
Время нарастания: 31
ns
Cossⓘ - Выходная емкость: 108
pf
Rdsⓘ - Сопротивление сток-исток открытого транзистора: 0.019
Ohm
Тип корпуса:
TO-220F
Аналог (замена) для AOTF2618L
AOTF2618L
Datasheet (PDF)

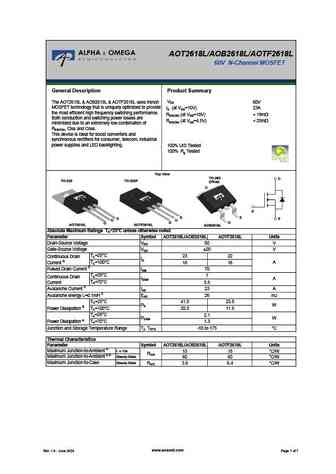

..1. Size:367K aosemi
aotf2618l.pdf
AOT2618L/AOB2618L/AOTF2618L60V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT2618L & AOB2618L & AOTF2618L uses trench 60VMOSFET technology that is uniquely optimized to provide ID (at VGS=10V) 23Athe most efficient high frequency switching performance. RDS(ON) (at VGS=10V)
..2. Size:202K inchange semiconductor
aotf2618l.pdf
INCHANGE Semiconductorisc N-Channel MOSFET Transistor AOTF2618LFEATURESWith TO-220F packagingHigh speed switchingEasy to useThe most efficient high frequency switching performance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSPFC stagesLCD & PDP TVPower supplySwitching applicat
7.1. Size:348K aosemi
aotf2610l.pdf
AOT2610L/AOTF2610L60V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT2610L & AOTF2610L uses trench MOSFET 60Vtechnology that is uniquely optimized to provide the most ID (at VGS=10V) 55A / 35Aefficient high frequency switching performance. Both RDS(ON) (at VGS=10V)

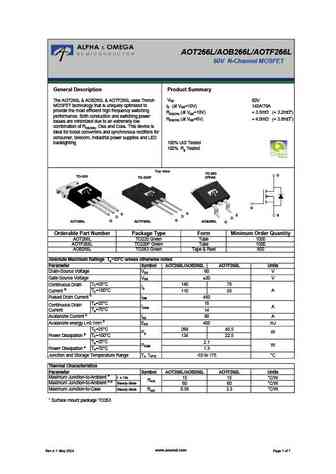

8.1. Size:405K aosemi
aotf266l.pdf
AOT266L/AOB266L/AOTF266L60V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT266L & AOB266L & AOTF266L uses Trench 60VMOSFET technology that is uniquely optimized to provide ID (at VGS=10V) 140A/78Athe most efficient high frequency switching performance. RDS(ON) (at VGS=10V)
8.2. Size:255K aosemi
aotf260l.pdf
AOTF260L60V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOTF260L uses Trench MOSFET technology that is 60Vuniquely optimized to provide the most efficient high ID (at VGS=10V) 92Afrequency switching performance. Both conduction and RDS(ON) (at VGS=10V)
8.3. Size:313K aosemi
aotf262l.pdf
AOTF262L60V N-Channel MOSFETGeneral Description Product SummaryVDS Trench Power MV MOSFET technology 60V Low RDS(ON) ID (at VGS=10V) 85A Low Gate Charge RDS(ON) (at VGS=10V)

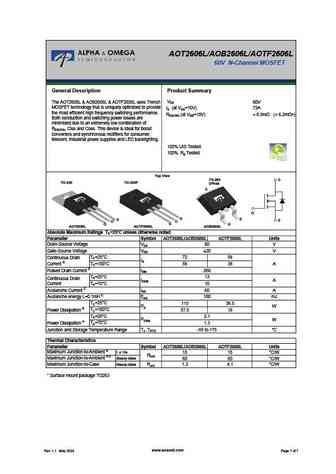

8.4. Size:349K aosemi
aotf2606l.pdf
AOT2606L/AOB2606L/AOTF2606L60V N-Channel MOSFETGeneral Description Product SummaryVDSThe AOT2606L & AOB2606L & AOTF2606L uses Trench 60VMOSFET technology that is uniquely optimized to provide ID (at VGS=10V) 72Athe most efficient high frequency switching performance. RDS(ON) (at VGS=10V)
8.5. Size:235K inchange semiconductor
aotf266l.pdf
isc N-Channel MOSFET Transistor AOTF266LFEATURESDrain Current I = 140A@ T =25D CDrain Source Voltage-: V = 60V(Min)DSSStatic Drain-Source On-Resistance: R = 3.5m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONBe suitable for synchronous rectification for server andgen
8.6. Size:236K inchange semiconductor
aotf260l.pdf
isc N-Channel MOSFET Transistor AOTF260LFEATURESDrain Current I = 92A@ T =25D CDrain Source Voltage-: V = 60V(Min)DSSStatic Drain-Source On-Resistance: R = 2.6m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONBe suitable for synchronous rectification for server andgene
8.7. Size:235K inchange semiconductor
aotf262l.pdf
isc N-Channel MOSFET Transistor AOTF262LFEATURESDrain Current I = 85A@ T =25D CDrain Source Voltage-: V = 60V(Min)DSSStatic Drain-Source On-Resistance: R = 3.6m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONBe suitable for synchronous rectification for server andgene
8.8. Size:262K inchange semiconductor
aotf2606l.pdf
sc N-Channel MOSFET Transistor AOTF2606LFEATURESStatic drain-source on-resistance:RDS(on) 6.5mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONBe suitable for synchronous rectification for server andgeneral purpose applicationsABSOLUTE MAXIMUM RATIN
