JMPL0625AP - параметры транзистора MOSFET, его аналоги, datasheet

JMPL0625AP Datasheet (PDF)

..1. Size:1361K jiejie micro
jmpl0625ap.pdf pdf_icon

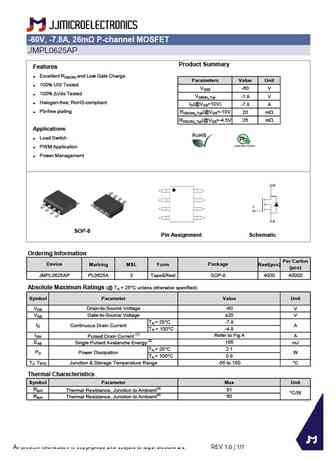

-60V, -7.8A, 26m P-channel MOSFETJMPL0625APProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS -60 V 100% Vds TestedVGS(th)_Typ -1.9 V Halogen-free; RoHS-compliantID(@VGS=10V) -7.8 A Pb-free platingRDS(ON)_Typ(@VGS=-10V 20 mWRDS(ON)_Typ(@VGS=-4.5V 26 mWApplications Load Switch PWM Appl

7.1. Size:637K jiejie micro
jmpl0622ak.pdf pdf_icon

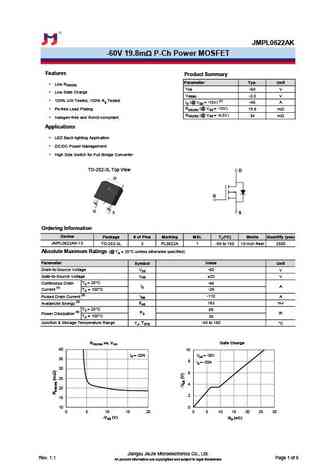

JMPL0622AK-60V 19.8mW P-Ch Power MOSFETFeaturesProduct SummaryParameter Typ. Unit Low RDS(ON) VDS-60 V Low Gate Charge VGS(th)-2.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = -10V) (1) -46 A RDS(ON) (@ VGS = -10V) Pb-free Lead Plating 19.8 mW RDS(ON) (@ VGS = -4.5V)34 mW Halogen-free and RoHS-compliantApplications LED Back-lighting Appli

8.1. Size:1379K jiejie micro
jmpl0648pkq.pdf pdf_icon

-60V, -22A, 48m P-channel Power SGT MOSFETJMPL0648PKQProduct SummaryFeatures Low ON-resistance RDS(ON) ParametersValue Unit Excellent Gate ChargeVDSS -60 V 100% UIS TestedVGS(th)_Typ -1.9 V 100% Vds TestedID(@VGS=-10V) -22 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=-10V 35 mW AEC-Q101 QualifiedRDS(ON)_Typ(@VGS=-4.5V 48 mWApplications

8.2. Size:355K jiejie micro
jmpl0648ag.pdf pdf_icon

JMPL0648AG-60V 40m P-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Low Gate Charge VDS-60 V 100% UIS Tested, 100% Rg Tested VGS(th)_Typ-2.0 V Pb-free Lead Plating ID (@ VGS = -10V) (1) -24 A RDS(ON)_Typ (@ VGS = -10V) Halogen-free and RoHS-compliant 40 m RDS(ON)_Typ (@ VGS = -4.5V)55 mApplications LED Back-lighting Applica
