JMTL3134K
Даташит. Основные параметры и характеристики. Поиск аналогов
Наименование прибора: JMTL3134K
Тип транзистора: MOSFET
Полярность: N
Pd ⓘ - Максимальная рассеиваемая мощность: 0.23
W
|Vds|ⓘ - Предельно допустимое напряжение сток-исток: 20
V
|Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 10
V
|Id| ⓘ - Максимально
допустимый постоянный ток стока: 0.9
A
Tj ⓘ - Максимальная температура канала: 150
°C
tr ⓘ -
Время нарастания: 19
ns
Cossⓘ - Выходная емкость: 22
pf
Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.24
Ohm
Тип корпуса:
SOT23
Аналог (замена) для JMTL3134K
-
подбор ⓘ MOSFET транзистора по параметрам
JMTL3134K
Datasheet (PDF)

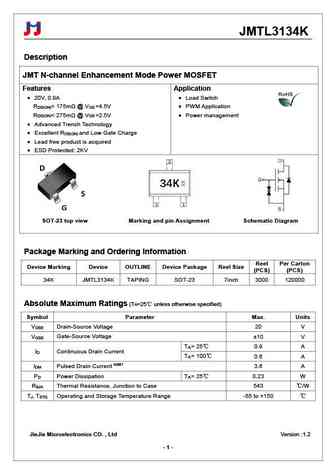

..1. Size:326K jiejie micro
jmtl3134k.pdf
JMTL3134KDescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 20V, 0.9A Load SwitchR

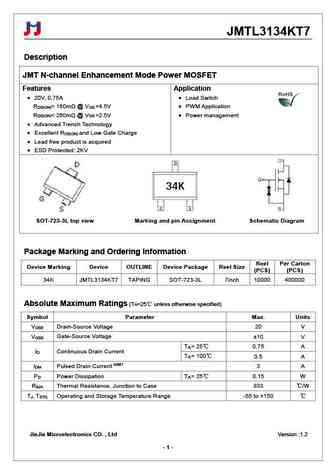

0.1. Size:290K jiejie micro
jmtl3134kt7.pdf
JMTL3134KT7DescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 20V, 0.75A Load SwitchR

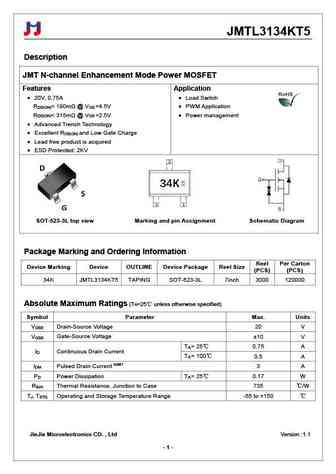

0.2. Size:338K jiejie micro
jmtl3134kt5.pdf
JMTL3134KT5DescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 20V, 0.75A Load SwitchR

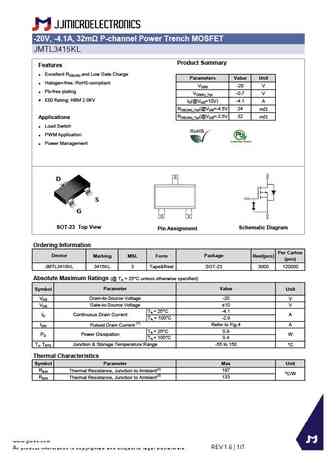

9.1. Size:1438K jiejie micro
jmtl3415kl.pdf
-20V, -4.1A, 32m P-channel Power Trench MOSFETJMTL3415KLProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit Halogen-free; RoHS-compliantVDSS -20 V Pb-free platingVGS(th)_Typ -0.7 V ESD Rating: HBM 2.0KVID(@VGS=10V) -4.1 ARDS(ON)_Typ(@VGS=-4.5V 24 mWRDS(ON)_Typ(@VGS=-2.5V 32 mWApplications Load Switch PWM Applicat

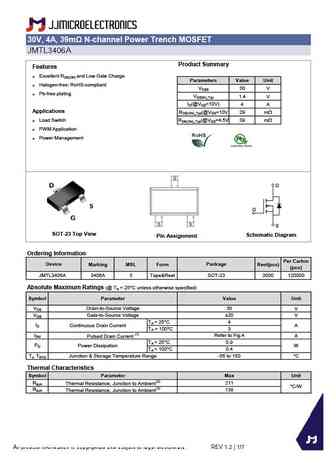

9.2. Size:1270K jiejie micro
jmtl3406a.pdf
30V, 4A, 39m N-channel Power Trench MOSFETJMTL3406A Product SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit Halogen-free; RoHS-compliantVDSS 30 V Pb-free platingVGS(th)_Typ 1.4 VID(@VGS=10V) 4 AApplicationsRDS(ON)_Typ(@VGS=10V 29 mW Load Switch RDS(ON)_Typ(@VGS=4.5V 39 mW PWM Application Power ManagementDG SSO

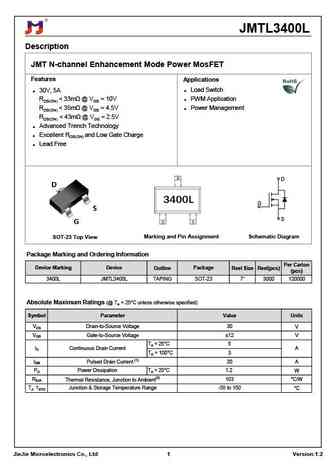

9.3. Size:834K jiejie micro
jmtl3400l.pdf
JMTL3400LDescriptionJMT N-channel Enhancement Mode Power MosFETFeaturesApplications 30V, 5A Load SwitchRDS(ON)
9.4. Size:188K jiejie micro
jmtl3415k.pdf
JMTL3415K Description JMT P-channel MOSFET Features Application V =-20V, I =-4A PWM Applications DS D R =38m (Typ.) @ VGS = -4.5V Load Switch DS(ON) R =48m (Typ.) @ VGS = -2.5V Power Management DS(ON) High Power and Current Handing Capability Lead Free Product is Acquired Surface Mount Package ESD Rating: HBM 2.0KV Package

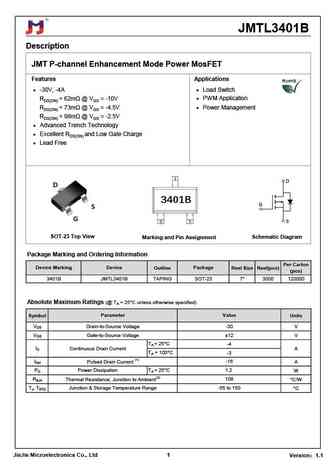

9.5. Size:1152K jiejie micro
jmtl3401b.pdf
JMTL3401BDescriptionJMT P-channel Enhancement Mode Power MosFETFeatures Applications -30V, -4A Load SwitchRDS(ON)
9.6. Size:546K jiejie micro
jmtl3401a.pdf
JMTL3401ADescriptionJMT P-channel Enhancement Mode Power MosFETFeatures Applications -30V, -4.2A Load SwitchRDS(ON)

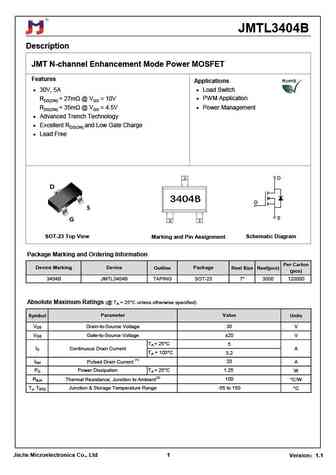

9.7. Size:1030K jiejie micro
jmtl3404b.pdf
JMTL3404BDescriptionJMT N-channel Enhancement Mode Power MOSFETFeaturesApplications 30V, 5A Load SwitchRDS(ON)

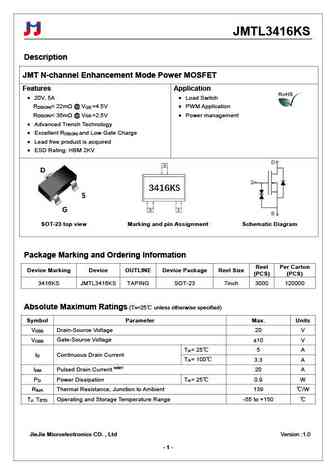

9.8. Size:383K jiejie micro
jmtl3416ks.pdf
JMTL3416KSDescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 20V, 5A Load SwitchR

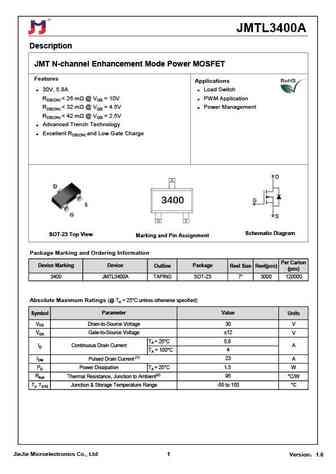

9.9. Size:952K jiejie micro
jmtl3400a.pdf
JMTL3400ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeaturesApplications 30V, 5.8A Load SwitchRDS(ON)

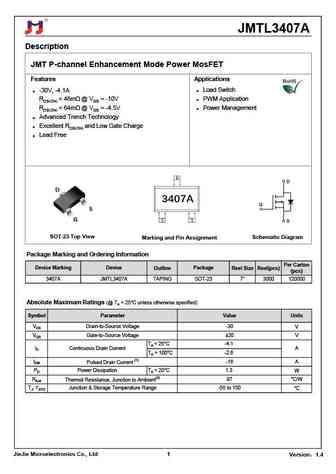

9.10. Size:1071K jiejie micro
jmtl3407a.pdf
JMTL3407ADescriptionJMT P-channel Enhancement Mode Power MosFETFeatures Applications -30V, -4.1A Load SwitchRDS(ON)

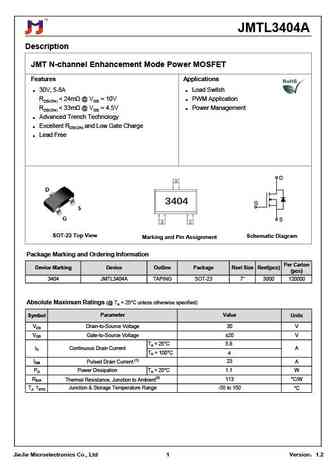

9.11. Size:544K jiejie micro
jmtl3404a.pdf
JMTL3404ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Applications 30V, 5.8A Load SwitchRDS(ON)

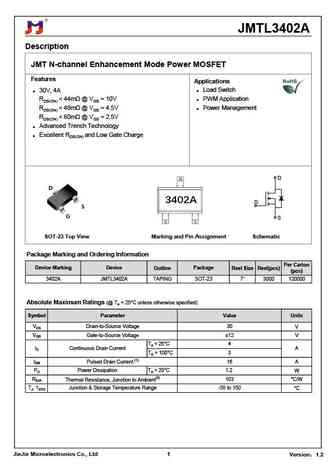

9.12. Size:487K jiejie micro
jmtl3402a.pdf
JMTL3402ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeaturesApplications 30V, 4A Load SwitchRDS(ON)

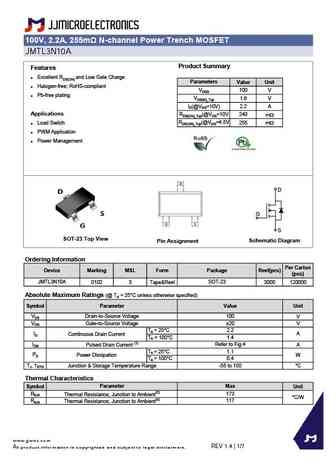

9.13. Size:1303K jiejie micro
jmtl3n10a.pdf
100V, 2.2A, 255m N-channel Power Trench MOSFETJMTL3N10AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit Halogen-free; RoHS-compliantVDSS 100 V Pb-free platingVGS(th)_Typ 1.6 VID(@VGS=10V) 2.2 AApplicationsRDS(ON)_Typ(@VGS=10V 240 mW Load Switch RDS(ON)_Typ(@VGS=4.5V 255 mW PWM Application Power ManagementDG
