AP100P02NF - Даташиты. Аналоги. Основные параметры
Наименование производителя: AP100P02NF
Тип транзистора: MOSFET
Полярность: P
Pd ⓘ - Максимальная рассеиваемая мощность: 52.1
W
|Vds|ⓘ - Предельно допустимое напряжение сток-исток: 40
V
|Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 20
V
|Id| ⓘ - Максимально
допустимый постоянный ток стока: 100
A
Tj ⓘ - Максимальная температура канала: 150
°C
tr ⓘ -
Время нарастания: 50
ns
Cossⓘ - Выходная емкость: 1600
pf
Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.0027
Ohm
Тип корпуса:
DFN5X6-8L
Аналог (замена) для AP100P02NF
-
подбор ⓘ MOSFET транзистора по параметрам

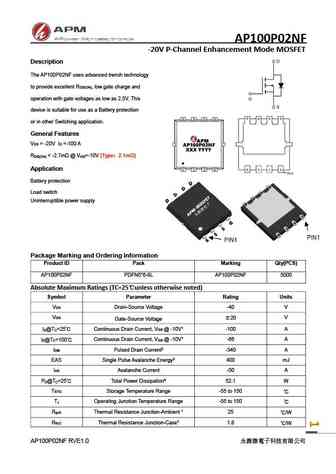

AP100P02NF Datasheet (PDF)
..1. Size:1239K cn apm
ap100p02nf.pdf

AP100P02NF -20V P-Channel Enhancement Mode MOSFET Description The AP100P02NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-100 A DS DR

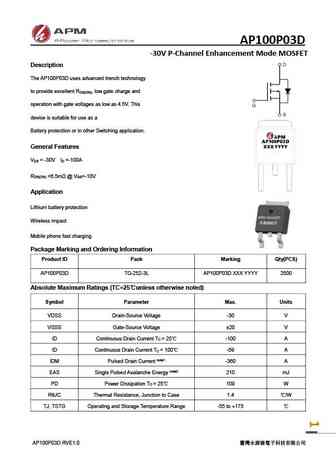

7.1. Size:1150K cn apm
ap100p03d.pdf

AP100P03D -30V P-Channel Enhancement Mode MOSFET Description The AP100P03D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-100A DS DR
7.2. Size:1911K cn apm
ap100p04d.pdf

AP100P04D -40V P-Channel Enhancement Mode MOSFET Description The AP100P04D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -40V I =-100 A DS DR
9.1. Size:132K ape
ap1005bsq.pdf

AP1005BSQHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Lead-Free Package D BVDSS 30V Low Conductance Loss RDS(ON) 3.8m Low Profile (
9.2. Size:104K ape
ap1001bsq.pdf

AP1001BSQHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Lead-Free Package D BVDSS 30V Low Conductance Loss RDS(ON) 6m Low Profile (
9.3. Size:99K ape
ap1002bmx.pdf

AP1002BMXHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Lead-Free Package D BVDSS 30V Low Conductance Loss RDS(ON) 1.8m Low Profile (
9.4. Size:158K ape
ap1003bst.pdf

AP1003BSTPreliminaryAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Lead-Free Package D BVDSS 30V Low Conductance Loss RDS(ON) 4.7m Low Profile (
9.5. Size:133K ape
ap1004cmx.pdf

AP1004CMXHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Ultra-low Forward Diode D BVDSS 30V Low Conductance Loss RDS(ON) 1.8m Low Profile (
9.6. Size:1583K cn apm
ap100n03p ap100n03t.pdf

AP100N03P/T30V N-Channel Enhancement Mode MOSFET Description The AP100N03P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =100 A DS DR
9.7. Size:1377K cn apm
ap100n03ad.pdf

AP100N03AD 30V N-Channel Enhancement Mode MOSFET Description The AP100N03AD uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =30V I =100A DS DR
9.8. Size:903K cn apm
ap100n04d.pdf

AP100N04D 40V N-Channel Enhancement Mode MOSFET Description The AP100N04D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =100 A DS DR
9.9. Size:1461K cn apm
ap100n08d.pdf

AP100N08D 80V N-Channel Enhancement Mode MOSFET Description The AP100N08D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 80V I =100A DS DR
9.10. Size:1663K cn apm
ap100n03d.pdf

AP100N03D 30V N-Channel Enhancement Mode MOSFET Description The AP100N03D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =100 A DS DR
9.11. Size:1322K cn apm
ap100n03y.pdf

AP100N03Y 30V N-Channel Enhancement Mode MOSFET Description The AP100N03Y uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =30V I =100A DS DR
9.12. Size:1319K cn apm
ap100n04nf.pdf

AP100N04NF 40V N-Channel Enhancement Mode MOSFET Description The AP100N04NF uses advanced APM-SGT II technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =100A DS DR
