Биполярный транзистор H3906
- описание производителя. Основные параметры. Даташиты.
Наименование производителя: H3906
Тип материала: Si
Полярность: PNP
Максимальная рассеиваемая мощность (Pc): 0.625
W
Макcимально допустимое напряжение коллектор-база (Ucb): 40
V
Макcимально допустимое напряжение коллектор-эмиттер (Uce): 40
V
Макcимально допустимое напряжение эмиттер-база (Ueb): 5
V
Макcимальный постоянный ток коллектора (Ic): 0.2
A
Предельная температура PN-перехода (Tj): 150
°C
Граничная частота коэффициента передачи тока (ft): 300
MHz
Статический коэффициент передачи тока (hfe): 70
Корпус транзистора:
TO92
Аналоги (замена) для H3906
H3906
Datasheet (PDF)

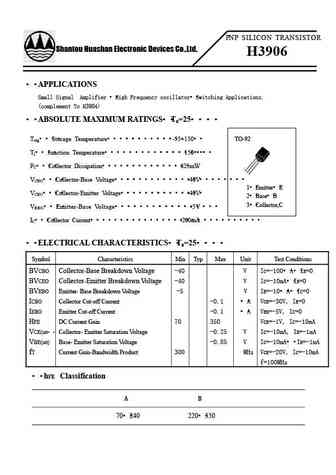

..1. Size:65K shantou-huashan
h3906.pdf
PN P S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H3906 APPLICATIONS Small Signal Amplifier High Frequency oscillatorSwitching Applications. (complement To H3904) ABSOLUTE MAXIMUM RATINGSTa=25 TstgStorage Temperature -55~150 TO-92 TjJunction Temperature
0.1. Size:124K chenmko
ch3906vgp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906VGPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.FEATURESOT-563* Small surface mounting type. (SOT-563)* Low current (Max.=200mA). * Suitable for high packing density.* Low voltage (Max.=40V) .(1)(5)* High satur
0.2. Size:168K chenmko
ch3906gp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906GPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SOT-23FEATURE* Small surface mounting type. (SOT-23)* Low current (Max.=200mA). * Suitable for high packing density.* Low voltage (Max.=40V) .(1)* High saturation cu
0.3. Size:172K chenmko
ch3906gp-a.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906GP-ASURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SOT-23FEATURE* Small surface mounting type. (SOT-23)* Low current (Max.=200mA). * Suitable for high packing density.* Low voltage (Max.=40V) .(1)* High saturation
0.4. Size:146K chenmko
ch3906sgp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906SGPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.FEATURESC-88/SOT-363* Small surface mounting type. (SC-88/SOT363)* Low current (Max.=200mA). * Suitable for high packing density.* Low voltage (Max.=40V) .(1) (6)*
0.5. Size:148K chenmko
ch3906zgp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906ZGPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SC-73/SOT-223FEATURE* Small flat package. ( SC-73/SOT-223 )1.65+0.15* Low current (Max.=200mA). 6.50+0.200.90+0.052.0+0.3* Suitable for high packing density. 3.00
0.6. Size:117K chenmko
ch3906tgp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906TGPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SC-75/SOT-416FEATURE* Small surface mounting type. (SC-75/SOT-416)* Low current (Max.=200mA). * Suitable for high packing density.0.10.20.05* Low voltage (Max.=40
0.7. Size:194K chenmko
ch3906wgp.pdf
CHENMKO ENTERPRISE CO.,LTDCH3906WGPSURFACE MOUNT PNP Switching Transistor VOLTAGE 40 Volts CURRENT 0.2 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.FEATURESC-70/SOT-323* Small surface mounting type. (SC-70/SOT-323)* Low current (Max.=200mA). * Suitable for high packing density.* Low voltage (Max.=40V) .* High sat
