DRA5152Z datasheet, аналоги, основные параметры
Наименование производителя: DRA5152Z
Маркировка: L0
Тип материала: Si
Полярность: Pre-Biased-PNP
Встроенный резистор цепи смещения R1 = 0.51 kOhm
Встроенный резистор цепи смещения R2 = 5.1 kOhm
Соотношение сопротивлений R1/R2 = 0.1
Предельные значения
Максимальная рассеиваемая мощность (Pc): 0.15 W
Макcимально допустимое напряжение коллектор-база (Ucb): 50 V
Макcимально допустимое напряжение коллектор-эмиттер (Uce): 50 V
Макcимальный постоянный ток коллектора (Ic): 0.1 A
Предельная температура PN-перехода (Tj): 150 °C
Электрические характеристики
Статический коэффициент передачи тока (hFE): 20
Корпус транзистора: SMINI3-F2-B
Аналоги (замена) для DRA5152Z
- подборⓘ биполярного транзистора по параметрам
DRA5152Z даташит

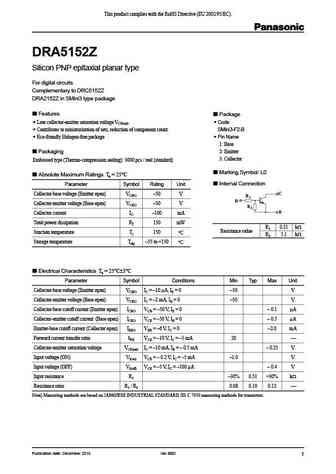

..1. Size:411K panasonic
