Биполярный транзистор LMUN2131LT1G - описание производителя. Основные параметры. Даташиты.
Наименование производителя: LMUN2131LT1G
Маркировка: A6H
Тип материала: Si
Полярность: Pre-Biased-PNP
Встроенный резистор цепи смещения R1 = 2.2 kOhm
Встроенный резистор цепи смещения R2 = 2.2 kOhm
Соотношение сопротивлений R1/R2 = 1
Максимальная рассеиваемая мощность (Pc): 0.246 W
Макcимально допустимое напряжение коллектор-база (Ucb): 50 V
Макcимально допустимое напряжение коллектор-эмиттер (Uce): 50 V
Макcимальный постоянный ток коллектора (Ic): 0.1 A
Предельная температура PN-перехода (Tj): 150 °C
Статический коэффициент передачи тока (hfe): 8
Корпус транзистора: SOT-23
Аналоги (замена) для LMUN2131LT1G
LMUN2131LT1G Datasheet (PDF)

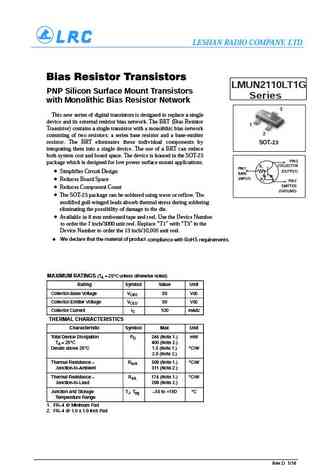

lmun2111lt1g lmun2112lt1g lmun2113lt1g lmun2114lt1g lmun2115lt1g lmun2116lt1g lmun2130lt1g lmun2131lt1g lmun2132lt1g lmun2133lt1g lmun2134lt1g lmun2136lt1g lmun2137lt1g lmun2138lt1g lmun2140lt1g.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
LESHAN RADIO COMPANY, LTD.Bias Resistor TransistorsLMUN2110LT1GPNP Silicon Surface Mount TransistorsSerieswith Monolithic Bias Resistor Network3This new series of digital transistors is designed to replace a singledevice and its external resistor bias network. The BRT (Bias Resistor1Transistor) contains a single transistor with a monolithic bias network2consisting of two
lmun2135lt1g.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
LESHAN RADIO COMPANY, LTD.Bias Resistor TransistorsLMUN2135LT1GS-LMUN2135LT1GPNP Silicon Surface Mount Transistorswith Monolithic Bias Resistor Network 3This new series of digital transistors is designed to replace a single1device and its external resistor bias network. The BRT (Bias Resistor2Transistor) contains a single transistor with a monolithic bias networkconsisting

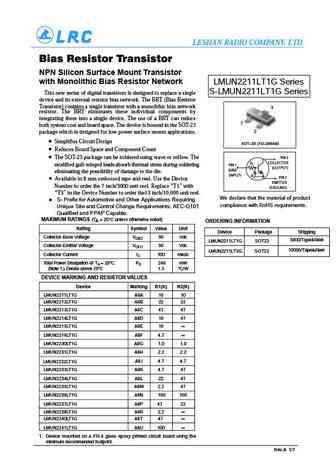

lmun2211lt lmun2212lt lmun2213lt lmun2214lt lmun2215lt lmun2216lt lmun2230lt lmun2231lt lmun2232lt lmun2233lt lmun2234lt lmun2235lt lmun2236lt lmun2237lt lmun2238lt lmun2240lt lmun2241lt.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
LESHAN RADIO COMPANY, LTD.Bas Resstor TransstorNPN Silicon Surface Mount Transistorwith Monolithic Bias Resistor NetworkLMUN2211LT1G SeriesS-LMUN2211LT1G SeriesThis new series of digital transistors is designed to replace a singledevice and its external resistor bias network. The BRT (Bias ResistorTransistor) contains a single transistor with a monolithic bias network3
