Биполярный транзистор LMUN5114DW1T1G Даташит. Аналоги


   Наименование производителя: LMUN5114DW1T1G
   Маркировка: 0D
   Тип материала: Si
   Полярность: Pre-Biased-PNP
   Встроенный резистор цепи смещения R1 = 10 kOhm
   Встроенный резистор цепи смещения R2 = 47 kOhm
   Соотношение сопротивлений R1/R2 = 0.21
   Максимальная рассеиваемая мощность (Pc): 0.187 W
   Макcимально допустимое напряжение коллектор-база (Ucb): 50 V
   Макcимально допустимое напряжение коллектор-эмиттер (Uce): 50 V
   Макcимальный постоянный ток коллектора (Ic): 0.1 A
   Предельная температура PN-перехода (Tj): 150 °C
   Статический коэффициент передачи тока (hfe): 80
   Корпус транзистора: SOT-363
     - подбор биполярного транзистора по параметрам



LMUN5114DW1T1G Datasheet (PDF)

 ..1. Size:918K  lrc
 lmun5111dw1t1g lmun5112dw1t1g lmun5113dw1t1g lmun5114dw1t1g lmun5115dw1t1g lmun5116dw1t1g lmun5130dw1t1g lmun5131dw1t1g lmun5132dw1t1g.pdf pdf_icon

LMUN5114DW1T1G

LESHAN RADIO COMPANY, LTD.Dual Bias Resistor TransistorsPNP Silicon Surface Mount TransistorsLMUN5111DW1T1GSerieswith Monolithic Bias Resistor NetworkThe BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias S-LMUN5111DW1T1Gnetwork consisting of two resistors; a series base resistor and a baseemitter resistor. TheseSeriesdigital transistors are

 6.1. Size:171K  lrc

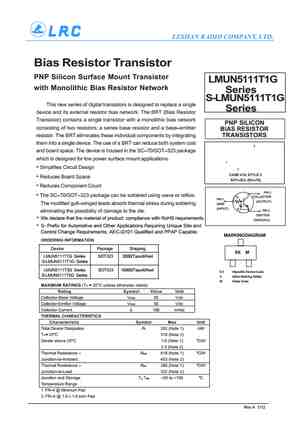

 lmun5111t1g lmun5112t1g lmun5113t1g lmun5114t1g lmun5115t1g lmun5116t1g lmun5130t1g lmun5131t1g lmun5132t1g lmun5133t1g lmun5134t1g lmun5135t1g lmun5136t1g lmun5137t1g.pdf pdf_icon

LMUN5114DW1T1G

 9.1. Size:207K  lrc
 lmun5211dw1t1g lmun5212dw1t1g lmun5213dw1t1g lmun5214dw1t1g lmun5215dw1t1g lmun5216dw1t1g lmun5230dw1t1g lmun5231dw1t1g.pdf pdf_icon

LMUN5114DW1T1G

LESHAN RADIO COMPANY, LTD.Dual Bias ResistorTransistorsLMUN5211DW1T1GNPN Silicon Surface Mount TransistorsSerieswith Monolithic Bias Resistor NetworkS-LMUN5211DW1T1GSeriesThe BRT (Bias Resistor Transistor) contains a single transistor with a monolithic biasnetwork consisting of two resistors; a series base resistor and a baseemitter resistor. These65digital transistor

 9.2. Size:145K  lrc
 lmun5211t1g lmun5212t1g lmun5213t1g lmun5214t1g lmun5215t1g lmun5216t1g lmun5230t1g lmun5231t1g lmun5232t1g lmun5233t1g lmun5234t1g lmun5235t1g lmun5237t1g.pdf pdf_icon

LMUN5114DW1T1G

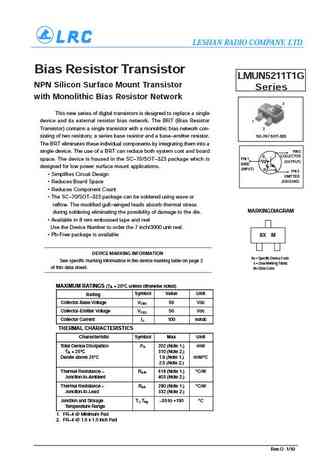

LESHAN RADIO COMPANY, LTD.Bias Resistor TransistorLMUN5211T1GNPN Silicon Surface Mount TransistorSerieswith Monolithic Bias Resistor Network3This new series of digital transistors is designed to replace a singledevice and its external resistor bias network. The BRT (Bias Resistor1Transistor) contains a single transistor with a monolithic bias network con- 2sisting of two r
