DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D109BF620; BF622NPN high-voltage transistors1999 Apr 21Product specificationSupersedes data of 1997 Apr 09Philips Semiconductors Product specificationNPN high-voltage transistors BF620; BF622FEATURES PINNING Low current (max. 50 mA)PIN DESCRIPTION High voltage (max. 300 V).1 emitter2 collectorAPPLICATIONS

DISCRETE SEMICONDUCTORS DATA SHEETdbook, halfpageM3D109BF620; BF622NPN high-voltage transistorsProduct data sheet 2004 Dec 14Supersedes data of 1999 Apr 21NXP Semiconductors Product data sheetNPN high-voltage transistors BF620; BF622FEATURES PINNING Low current (max. 50 mA)PIN DESCRIPTION High voltage (max. 300 V).1 emitter2 collectorAPPLICATIONS3 base

Important notice Dear Customer, On 7 February 2017 the former NXP Standard Product business became a new company with the tradename Nexperia. Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS semiconductors with its focus on the automotive, industrial, computing, consumer and wearable application markets In data sheets and application notes which still contain

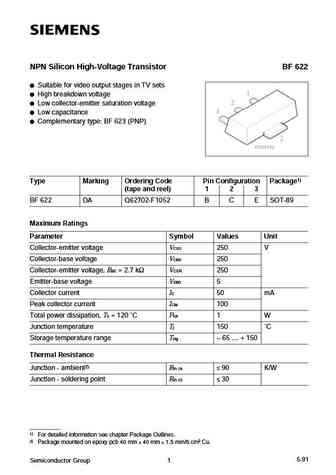

NPN Silicon High-Voltage Transistor BF 622 Suitable for video output stages in TV sets High breakdown voltage Low collector-emitter saturation voltage Low capacitance Complementary type: BF 623 (PNP)Type Marking Ordering Code Pin Configuration Package1)(tape and reel) 1 2 3BF 622 DA Q62702-F1052 B C E SOT-89Maximum RatingsParameter Symbol Values UnitCollector-emitter volta

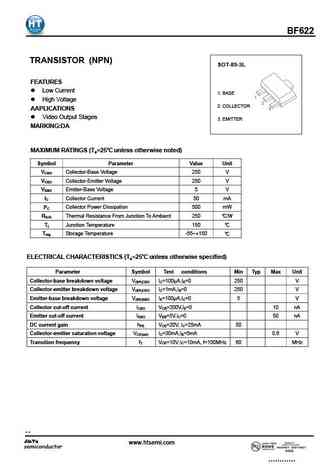

BF622TRANSISTOR (NPN) SOT-89-3L FEATURES Low Current1. BASE High Voltage2. COLLECTOR AAPLICATIONS Video Output Stages 3. EMITTER MARKING:DA MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage 250 V VCEO Collector-Emitter Voltage 250 V VEBO Emitter-Base Voltage 5 V IC Collector Current 50 mA PC Collector

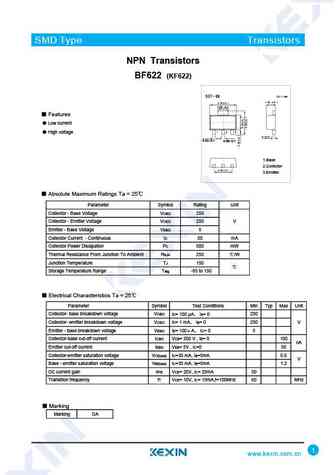

SMD Type TransistorsNPN TransistorsBF622 (KF622)1.70 0.1 Features Low current High voltage0.42 0.10.46 0.11.Base2.Collector3.Emitter Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Collector - Base Voltage VCBO 250 Collector - Emitter Voltage VCEO 250 V Emitter - Base Voltage VEBO 5 Collector Current - Continuous IC 50 mA Collect
