BUH615 Datasheet, Equivalent, Cross Reference Search
Type Designator: BUH615
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 55 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 10
Noise Figure, dB: -
Package: ISOWATT218
BUH615 Transistor Equivalent Substitute - Cross-Reference Search

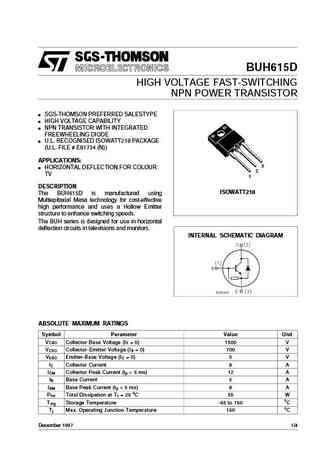

BUH615 Datasheet (PDF)
buh615d.pdf
BUH615DHIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR SGS-THOMSON PREFERRED SALESTYPE HIGH VOLTAGE CAPABILITY NPN TRANSISTOR WITH INTEGRATEDFREEWHEELING DIODE U.L. RECOGNISED ISOWATT218 PACKAGE(U.L. FILE # E81734 (N))APPLICATIONS: 3 HORIZONTAL DEFLECTION FOR COLOUR2TV 1DESCRIPTION ISOWATT218The BUH615D is manufactured usingMultiepitaxial Mesa technology fo
