BUY20 PDF and Equivalents Search



BUY20 Specs and Replacement


   Type Designator: BUY20
   Material of Transistor: Si
   Polarity: NPN

Absolute Maximum Ratings


   Maximum Collector Power Dissipation (Pc): 85 W
   Maximum Collector-Base Voltage |Vcb|: 200 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 200 °C

Electrical Characteristics


   Transition Frequency (ft): 2 MHz
   Forward Current Transfer Ratio (hFE), MIN: 20
   Noise Figure, dB: -
   Package: TO3


 BUY20 Substitution

   - BJT ⓘ Cross-Reference Search

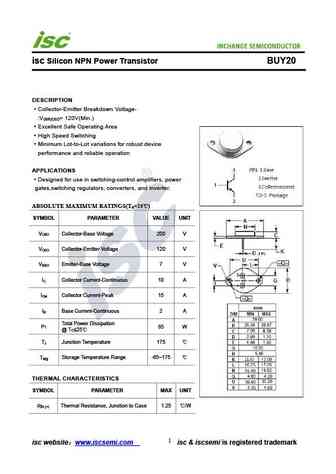

BUY20 datasheet

 ..1. Size:208K  inchange semiconductor
 buy20.pdf pdf_icon

BUY20

isc Silicon NPN Power Transistor BUY20 DESCRIPTION Collector-Emitter Breakdown Voltage- V = 120V(Min.) (BR)CEO Excellent Safe Operating Area High Speed Switching Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in switching-control amplifiers, power gates,switching regulators, converters, and inverter. ABSOLU... See More ⇒

Detailed specifications: BUY13 , BUY13S , BUY14 , BUY16 , BUY17 , BUY18 , BUY18S , BUY19 , BD335 , BUY21 , BUY21A , BUY22 , BUY23 , BUY23A , BUY23B , BUY24 , BUY26 .
