BUY22 PDF and Equivalents Search



BUY22 Specs and Replacement


   Type Designator: BUY22
   Material of Transistor: Si
   Polarity: NPN

Absolute Maximum Ratings


   Maximum Collector Power Dissipation (Pc): 85 W
   Maximum Collector-Base Voltage |Vcb|: 450 V
   Maximum Collector-Emitter Voltage |Vce|: 230 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 200 °C

Electrical Characteristics


   Transition Frequency (ft): 2 MHz
   Forward Current Transfer Ratio (hFE), MIN: 20
   Noise Figure, dB: -
   Package: TO3


 BUY22 Substitution

   - BJT ⓘ Cross-Reference Search

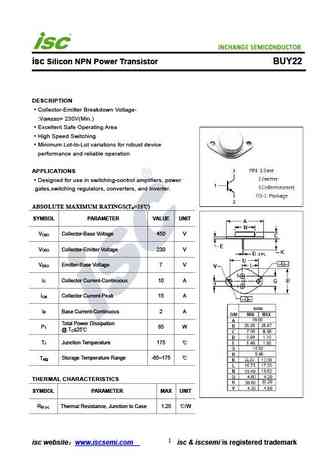

BUY22 datasheet

 ..1. Size:208K  inchange semiconductor
 buy22.pdf pdf_icon

BUY22

isc Silicon NPN Power Transistor BUY22 DESCRIPTION Collector-Emitter Breakdown Voltage- V = 230V(Min.) (BR)CEO Excellent Safe Operating Area High Speed Switching Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in switching-control amplifiers, power gates,switching regulators, converters, and inverter. ABSOLU... See More ⇒

Detailed specifications: BUY16 , BUY17 , BUY18 , BUY18S , BUY19 , BUY20 , BUY21 , BUY21A , 2SA1837 , BUY23 , BUY23A , BUY23B , BUY24 , BUY26 , BUY27 , BUY28 , BUY29 .

History: C25-28 | MD6100F | C169 | BUY13S
