BUY89 Datasheet and Replacement


   Type Designator: BUY89
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 62 W
   Maximum Collector-Base Voltage |Vcb|: 500 V
   Maximum Collector-Emitter Voltage |Vce|: 300 V
   Maximum Collector Current |Ic max|: 6 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 3 MHz
   Forward Current Transfer Ratio (hFE), MIN: 2.5
   Noise Figure, dB: -
   Package: TO3


 BUY89 Substitution

   - BJT ⓘ Cross-Reference Search

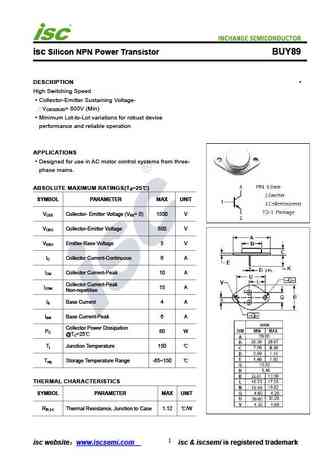

BUY89 Datasheet (PDF)

 ..1. Size:208K  inchange semiconductor
 buy89.pdf pdf_icon

BUY89

isc Silicon NPN Power Transistor BUY89DESCRIPTION High Switching SpeedCollector-Emitter Sustaining Voltage-: V = 800V (Min)CEO(SUS)Minimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in AC motor control systems from three-phase mains.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER MAX UNITV Collect
