DTA115GKA Datasheet, Equivalent, Cross Reference Search
Type Designator: DTA115GKA
SMD Transistor Code: K19
Material of Transistor: Si
Polarity: Pre-Biased-PNP
Built in Bias Resistor R2 = 100 kOhm
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN: 82
Noise Figure, dB: -
Package: SC-59
DTA115GKA Transistor Equivalent Substitute - Cross-Reference Search
DTA115GKA Datasheet (PDF)
dta115gka.pdf

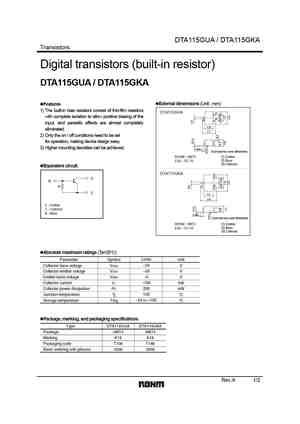

DTA115GUA / DTA115GKA Transistors Digital transistors (built-in resistor) DTA115GUA / DTA115GKA External dimensions (Unit : mm) Features 1) The built-in bias resistors consist of thin-film resistors DTA115GUAwith complete isolation to allow positive biasing of the input, and parasitic effects are almost completely 1.25eliminated. 2.12) Only the on / off conditions ne
ddta114gka ddta124gka ddta144gka ddta115gka.pdf
DDTA (R2-ONLY SERIES) KA PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Please click here to visit our online spice models database.Features A Epitaxial Planar Die Construction SC-59 Complementary NPN Types Available (DDTC) Dim Min Max Built-In Biasing Resistor, R2 only A 0.35 0.50 Lead Free/RoHS Compliant (Note 2) B C "Green" Device Note 3 & 4
chdta115gkgp.pdf
CHENMKO ENTERPRISE CO.,LTDCHDTA115GKGPSURFACE MOUNT PNP Digital Silicon TransistorVOLTAGE 50 Volts CURRENT 100 mAmpereAPPLICATION* Switching circuit, Inverter, Interface circuit, Driver circuit.FEATURE* Small surface mounting type. (SOT-23) SOT-23* High current gain. * Suitable for high packing density.* Low colloector-emitter saturation.* High saturation current capabil
dta115gua-gka k19 sot323 sot346.pdf
DTA115GUA / DTA115GTransistorsTransistorsDTC115GUA / DTC115G
dta115gua.pdf
DTA115G seriesDatasheetPNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)lOutline UMT3 SMT3Parameter ValueCollector Collector VCEO-50VBase Base IC-100mAEmitter Emitter R 100kWDTA115GKA DTA115GUA SOT-346 (SC-59) SOT-323 (SC-70) lFeatures lInner circuit1) Built-In Biasing Resistors2) Built-in bias resistors enable the configurati
ddta115gca.pdf
DDTA (R2-ONLY SERIES) CA PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR Please click here to visit our online spice models database.Features A Epitaxial Planar Die Construction Complementary NPN Types Available (DDTC) CSOT-23 Built-In Biasing Resistor, R2 only Lead, Halogen and Antimony Free, RoHS Compliant TOP VIEW Dim Min Max B C"Green" De
ddta115gua.pdf
DDTA (R2-ONLY SERIES) UA PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features Epitaxial Planar Die Construction A SOT-323 Complementary NPN Types Available (DDTC) CDim Min Max Built-In Biasing Resistor, R2 only A 0.25 0.40 Lead Free/RoHS Compliant (Note 2) B C "Green" Device, (Note 3 and 4) B 1.15 1.35 C 2.00 2.20 Mechanical Data EB
ddta115ge.pdf
DDTA (R2-ONLY SERIES) EDDTA (R2-ONLY SERIES) E PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features Epitaxial Planar Die Construction A Complementary NPN Types Available (DDTC) Built-In Biasing Resistor, R2 only CSOT-523 Lead Free/RoHS Compliant (Note 2) "Green" Device (Note 3 and 4) Dim Min Max Typ B CTOP VIEWA 0.15 0.30 0.22BMechan
ldta115get1g.pdf
LESHAN RADIO COMPANY, LTD.Bias Resistor TransistorPNP Silicon Surface Mount TransistorLDTA115GET1Gwith Monolithic Bias Resistor Network Applications Inverter, Interface, Driver 3 Features 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input 1resistors (see equivalent circuit). 22) The bias resistors consist
chdta115gugp.pdf
CHENMKO ENTERPRISE CO.,LTDCHDTA115GUGPSURFACE MOUNT PNP Digital Silicon TransistorVOLTAGE 50 Volts CURRENT 100 mAmpereAPPLICATION* Switching circuit, Inverter, Interface circuit, Driver circuit.FEATURESC-70/SOT-323* Small surface mounting type. (SC-70/SOT-323)* High current gain. * Suitable for high packing density.* Low colloector-emitter saturation.* High saturation
