FMG12 PDF and Equivalents Search

FMG12 Specs and Replacement

Type Designator: FMG12

SMD Transistor Code: G12

Material of Transistor: Si

Polarity: Pre-Biased-NPN

Built in Bias Resistor R1 = 2.2 kOhm

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 15 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.6 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 140 MHz

Forward Current Transfer Ratio (hFE), MIN: 100

Noise Figure, dB: -

Package: SC74A

- BJT ⓘ Cross-Reference Search

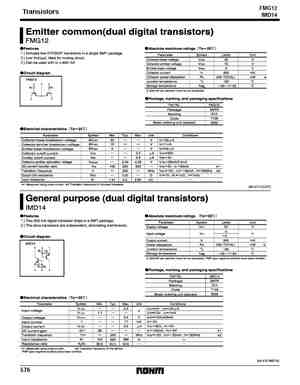

FMG12 datasheet
