All Transistors. IMT4 Datasheet



IMT4 Datasheet and Replacement


   Type Designator: IMT4
   SMD Transistor Code: T4
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.1 W
   Maximum Collector-Base Voltage |Vcb|: 120 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 140 MHz
   Forward Current Transfer Ratio (hFE), MIN: 180
   Noise Figure, dB: -
   Package: SO6


 IMT4 Substitution

   - BJT ⓘ Cross-Reference Search



IMT4 Datasheet (PDF)

 ..1. Size:489K  rohm
 imt4.pdf pdf_icon

IMT4

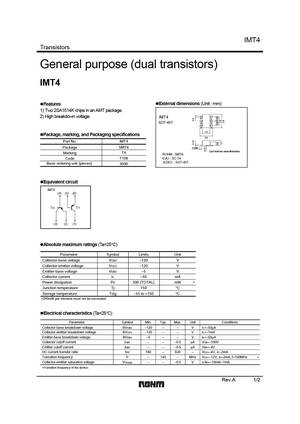

IMT4 Transistors General purpose (dual transistors) IMT4 External dimensions (Unit : mm) Features 1) Two 2SA1514K chips in an AMT package. 2) High breakdown voltage. IMT4SOT-4571.6 Package, marking, and Packaging specifications 2.8Part No. IMT4Package SMT6 0.3Min.Each lead has same dimensionsMarking T4ROHM : SMT6Code T108 EIAJ : SC-74JEDEC : SOT-457Basi

 ..2. Size:126K  diodes
 imt4.pdf pdf_icon

IMT4

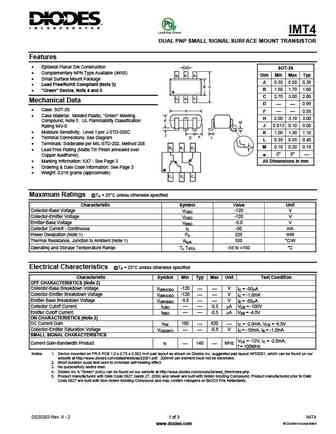

IMT4 DUAL PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features Epitaxial Planar Die Construction ASOT-26 Complementary NPN Type Available (IMX8) B2 B1 E1 Dim Min Max Typ Small Surface Mount Package A 0.35 0.50 0.38 Lead Free/RoHS Compliant (Note 3) B CB 1.50 1.70 1.60 "Green" Device, Note 4 and 5 C 2.70 3.00 2.80 C2 E2 C1Mechanical Data D

 0.1. Size:921K  rohm
 imt4fra.pdf pdf_icon

IMT4

IMT4FRAIMT4TransistorsAEC-Q101 QualifiedGeneral purpose (dual transistors) IMT4IMT4FRA External dimensions (Unit : mm) Features2SA1514KFRA1) Two 2SA1514K chips in an AMT package. 2) High breakdown voltage. IMT4FRAIMT41.6 Package, marking, and Packaging specifications 2.8Part No. IMT4FRAIMT4Package SMT6 0.3Min.Each lead has same dimensionsMarking T4ROHM

Datasheet: IMH6A , IMH7A , IMH8A , IMH9A , IMT17 , IMT1A , IMT2A , IMT3A , C5198 , IMX1 , IMX17 , IMX2 , IMX3 , IMX4 , IMX5 , IMX9 , IMZ1A .
