KT945B Datasheet and Replacement


   Type Designator: KT945B
   SMD Transistor Code: КТ945Б
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 50 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 15 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 51 MHz
   Collector Capacitance (Cc): 200 pF
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -


 KT945B Substitution

   - BJT ⓘ Cross-Reference Search

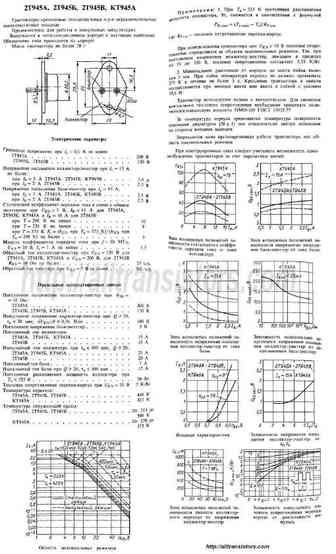

KT945B Datasheet (PDF)

 9.1. Size:1094K  russia
 kt945a 2t945a-b-v.pdf pdf_icon

KT945B
