Type Designator: MJ901

Material of Transistor: Si

Polarity: PNP

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 90 W

Maximum Collector-Base Voltage |Vcb|: 80 V

Maximum Collector-Emitter Voltage |Vce|: 80 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 10 A

Max. Operating Junction Temperature (Tj): 200 °C

Electrical Characteristics

Forward Current Transfer Ratio (hFE), MIN: 750

Noise Figure, dB: -

Package: TO3

 MJ901 Substitution

- BJT ⓘ Cross-Reference Search



MJ901 datasheet

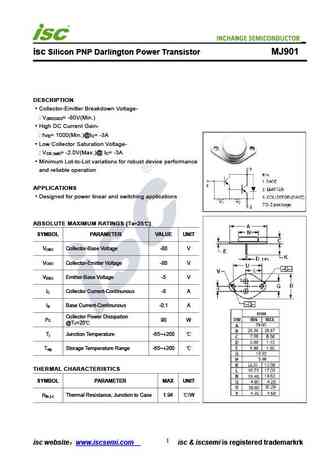

 ..1. Size:209K  inchange semiconductor

 mj901.pdf pdf_icon

MJ901

isc Silicon PNP Darlington Power Transistor MJ901 DESCRIPTION Collector-Emitter Breakdown Voltage- V = -80V(Min.) (BR)CEO High DC Current Gain- h = 1000(Min.)@I = -3A FE C Low Collector Saturation Voltage- V = -2.0V(Max.)@ I = -3A CE (sat) C Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power linear and... See More ⇒

 0.1. Size:207K  comset

 mj900-mj901-mj1000-mj1001-1.pdf pdf_icon

MJ901

COMSET SEMICONDUCTORS SEMICONDUCTORS MJ900 MJ901 PNP MJ1000 MJ1001 NPN COMPLEMENTARY POWER DARLINGTONS The MJ900, MJ901, MJ1000 and MJ1001 are silicon epitaxial-bas transistors in monolithic Darlington configuration, and are mounted in JEDEC TO-3 metal case. They are intended for use in power linear and switching applications. PNP types are the MJ900 and MJ901, and their compl... See More ⇒

 0.2. Size:170K  comset

 mj900-mj901-mj1000-mj1001.pdf pdf_icon

MJ901

MJ900 MJ901 PNP MJ1000 MJ1001 NPN COMPLEMENTARY POWER DARLINGTONS The MJ900, MJ901, MJ1000 and MJ1001 are silicon epitaxial-bas transistors in monolithic Darlington configuration, and are mounted in JEDEC TO-3 metal case. They are intended for use in power linear and switching applications. PNP types are the MJ900 and MJ901, and their complementary NPN types are the MJ10... See More ⇒
