BFQ151 Datasheet and Replacement


   Type Designator: BFQ151
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 1.25 W
   Maximum Collector-Base Voltage |Vcb|: 20 V
   Maximum Collector-Emitter Voltage |Vce|: 15 V
   Maximum Emitter-Base Voltage |Veb|: 3 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Transition Frequency (ft): 3500 MHz
   Forward Current Transfer Ratio (hFE), MIN: 25
   Noise Figure, dB: -
   Package: SOT54 TO92 SC43


 BFQ151 Substitution

   - BJT ⓘ Cross-Reference Search



BFQ151 Datasheet (PDF)

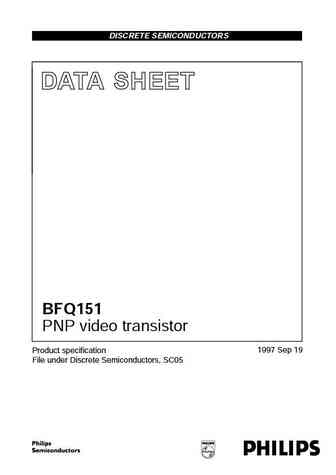

 ..1. Size:50K  philips
 bfq151 1.pdf pdf_icon

BFQ151

DISCRETE SEMICONDUCTORSDATA SHEETBFQ151PNP video transistor1997 Sep 19Product specificationFile under Discrete Semiconductors, SC05Philips Semiconductors Product specificationPNP video transistor BFQ151FEATURES DESCRIPTION High gain bandwidth PNP video transistor in a SOT54plastic package. Good thermal stability1page2 Gold metallization ensures3PINN
