BRY61 Datasheet and Replacement


   Type Designator: BRY61
   SMD Transistor Code: A5_A5p_A5t
   Material of Transistor: Si
   Polarity: PNPN
   Maximum Collector Power Dissipation (Pc): 0.25 W
   Maximum Collector-Base Voltage |Vcb|: 70 V
   Maximum Collector-Emitter Voltage |Vce|: 70 V
   Maximum Emitter-Base Voltage |Veb|: 70 V
   Maximum Collector Current |Ic max|: 0.175 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 1000
   Noise Figure, dB: -
   Package: SOT23


 BRY61 Substitution

   - BJT ⓘ Cross-Reference Search



BRY61 Datasheet (PDF)

 ..1. Size:61K  philips
 bry61 3.pdf pdf_icon

BRY61

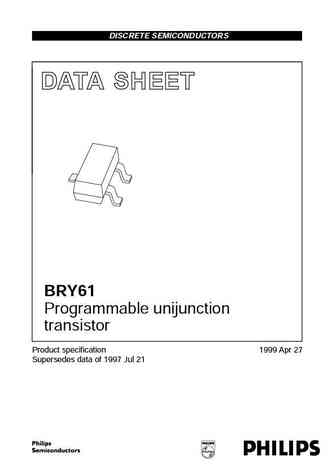

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D088BRY61Programmable unijunctiontransistorProduct specification 1999 Apr 27Supersedes data of 1997 Jul 21Philips Semiconductors Product specificationProgrammable unijunction transistor BRY61DESCRIPTION PINNINGPlanar PNPN trigger device in aPIN DESCRIPTIONSOT23 plastic package.1 anode2 cathodeAPPLICATIONS3 gat
