FZT717 Datasheet and Replacement
Type Designator: FZT717
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Emitter Voltage |Vce|: 12 V
Maximum Collector Current |Ic max|: 3 A
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN: 300
Noise Figure, dB: -
Package: SOT223
FZT717 Substitution

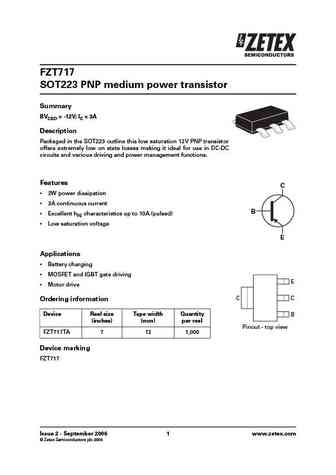

FZT717 Datasheet (PDF)
fzt717.pdf

FZT717SOT223 PNP medium power transistorSummaryBVCEO = -12V; IC = 3ADescriptionPackaged in the SOT223 outline this low saturation 12V PNP transistoroffers extremely low on state losses making it ideal for use in DC-DCcircuits and various driving and power management functions.FeaturesC 2W power dissipation 3A continuous currentB Excellent hFE characteristics u
