All Transistors. DPLS160 Datasheet



DPLS160 Datasheet and Replacement


   Type Designator: DPLS160
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.3 W
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Collector Current |Ic max|: 1 A
   Transition Frequency (ft): 150 MHz
   Forward Current Transfer Ratio (hFE), MIN: 150
   Noise Figure, dB: -
   Package: SOT23


 DPLS160 Substitution

   - BJT ⓘ Cross-Reference Search



DPLS160 Datasheet (PDF)

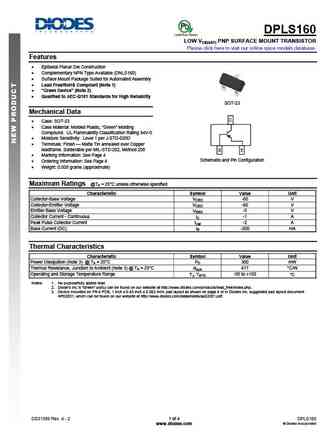

 ..1. Size:164K  diodes
 dpls160.pdf pdf_icon

DPLS160

DPLS160 LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR Please click here to visit our online spice models database.Features Epitaxial Planar Die Construction Complementary NPN Type Available (DNLS160) Surface Mount Package Suited for Automated Assembly Lead Free/RoHS Compliant (Note 1) "Green Device" (Note 2) Qualified to AEC-Q101 Standards for High Reliabil

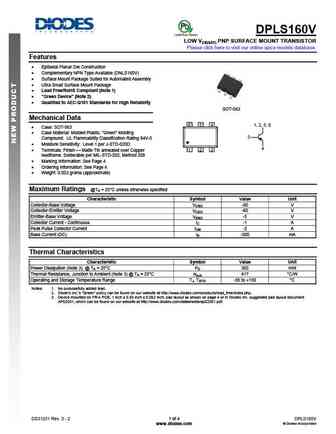

 0.1. Size:167K  diodes
 dpls160v.pdf pdf_icon

DPLS160

DPLS160V LOW VCE(SAT) PNP SURFACE MOUNT TRANSISTOR Please click here to visit our online spice models database. Features Epitaxial Planar Die Construction Complementary NPN Type Available (DNLS160V) Surface Mount Package Suited for Automated Assembly Ultra Small Surface Mount Package Lead Free/RoHS Compliant (Note 1) "Green Device" (Note 2) Qualif
