MJB5742 Datasheet and Replacement


   Type Designator: MJB5742
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 100 W
   Maximum Collector-Emitter Voltage |Vce|: 400 V
   Maximum Emitter-Base Voltage |Veb|: 8 V
   Maximum Collector Current |Ic max|: 8 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 200
   Noise Figure, dB: -
   Package: D2PAK


 MJB5742 Substitution

   - BJT ⓘ Cross-Reference Search



MJB5742 Datasheet (PDF)

 ..1. Size:133K  onsemi
 mjb5742.pdf pdf_icon

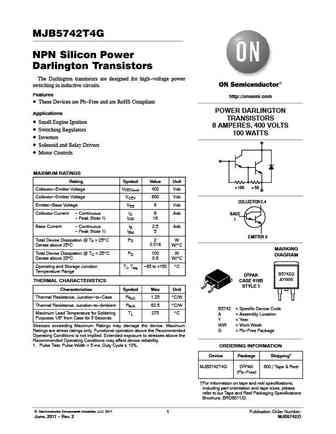

MJB5742

MJB5742T4GNPN Silicon PowerDarlington TransistorsThe Darlington transistors are designed for high-voltage powerswitching in inductive circuits.Featureshttp://onsemi.com These Devices are Pb-Free and are RoHS CompliantPOWER DARLINGTONApplicationsTRANSISTORS Small Engine Ignition8 AMPERES, 400 VOLTS Switching Regulators100 WATTS Inverters Solenoid an

 0.1. Size:132K  onsemi
 mjb5742t4g.pdf pdf_icon

MJB5742

MJB5742T4GNPN Silicon PowerDarlington TransistorsThe Darlington transistors are designed for high-voltage powerswitching in inductive circuits.Featureshttp://onsemi.com These Devices are Pb-Free and are RoHS CompliantPOWER DARLINGTONApplicationsTRANSISTORS Small Engine Ignition8 AMPERES, 400 VOLTS Switching Regulators100 WATTS Inverters Solenoid an
