   Type Designator: QSX2
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 60 pF
   Forward Current Transfer Ratio (hFE), MIN: 270
   Noise Figure, dB: -
   Package: TSMT6


 QSX2 Substitution

   - BJT ⓘ Cross-Reference Search



QSX2 Datasheet (PDF)

 ..1. Size:62K  rohm
 qsx2.pdf pdf_icon

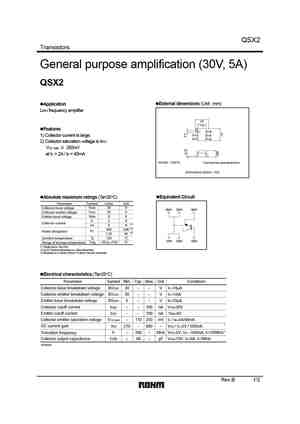

QSX2

QSX2 Transistors General purpose amplification (30V, 5A) QSX2 External dimensions (Unit : mm) Application Low frequency amplifier 2.81.6 Features 1) Collector current is large. 2) Collector saturation voltage is low. VCE (sat) 250mV at IC = 2A / IB = 40mA ROHM : TSMT6 Each lead has same dimensionsAbbreviated symbol : X02 Equivalent Circuit Absolute maximum r
