All Transistors. KTA511T Datasheet



KTA511T Datasheet and Replacement


   Type Designator: KTA511T
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.9 W
   Maximum Collector-Base Voltage |Vcb|: 35 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 13 pF
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -
   Package: TSV


 KTA511T Substitution

   - BJT ⓘ Cross-Reference Search



KTA511T Datasheet (PDF)

 ..1. Size:45K  kec
 kta511t.pdf pdf_icon

KTA511T

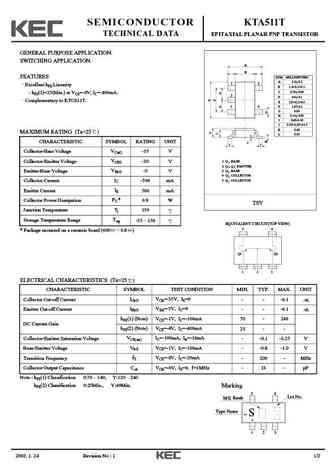

SEMICONDUCTOR KTA511TTECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTORGENERAL PURPOSE APPLICATION.SWITCHING APPLICATION. EBFEATURES DIM MILLIMETERS_A 2.9 + 0.215Excellent hFE LinearityB 1.6+0.2/-0.1_C 0.70 + 0.05: hFE(2)=25(Min.) at VCE=-6V, IC=-400mA.2_D 0.4 + 0.1Complementary to KTC611T.E 2.8+0.2/-0.3_+F 1.9 0.23 4G 0.95_H 0.16 + 0.05I 0.00-0
