All Transistors. STD361 Datasheet



STD361 Datasheet and Replacement


   Type Designator: STD361
   SMD Transistor Code: YA
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 1 W
   Maximum Collector-Base Voltage |Vcb|: 40 V
   Maximum Collector-Emitter Voltage |Vce|: 15 V
   Maximum Emitter-Base Voltage |Veb|: 7 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 150 MHz
   Collector Capacitance (Cc): 50 pF
   Forward Current Transfer Ratio (hFE), MIN: 160
   Noise Figure, dB: -
   Package: SOT-89


 STD361 Substitution

   - BJT ⓘ Cross-Reference Search



STD361 Datasheet (PDF)

 ..1. Size:289K  auk
 std361.pdf pdf_icon

STD361

STD361NPN Silicon TransistorPIN Connection Description Extremely low collector-to-emitter saturation voltage ( VCE(SAT)=0.2V Typ. @IC/IB=3A/150) Suitable for low voltage large current drivers Switching Application SOT-89 Ordering Information Type NO. Marking Package Code YA STD361 SOT-89 YWW YA: DEVICE CODE, YWW(Y : Year code, WW : Weekly

 9.1. Size:771K  st
 std36nh02l.pdf pdf_icon

STD361

STD36NH02LN-channel 24V - 0.011 - 30A - DPAKSTripFET III Power MOSFETGeneral featuresType VDSS RDS(on) IDSTD36NH02L 24V

 9.2. Size:971K  st

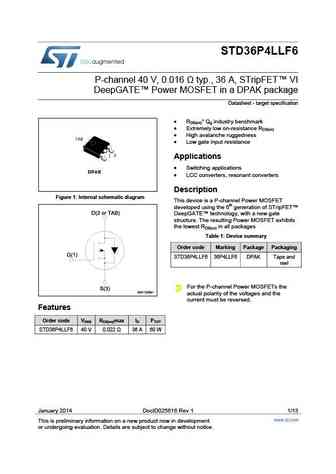

 std36p4llf6.pdf pdf_icon

STD361

STD36P4LLF6 P-channel 40 V, 0.016 typ., 36 A, STripFET VI DeepGATE Power MOSFET in a DPAK package Datasheet - target specification RDS(on)* Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate input resistance Applications Switching applications DPAK LCC converters, resonant converters Description

 9.3. Size:111K  samhop
 stu36l01a std36l01a.pdf pdf_icon

STD361

GrPPrPPSTU/D36L01AaS mHop Microelectronics C orp.Ver 1.0N-Channel Logic Level Enhancement Mode Field Effect TransistorFEATURESPRODUCT SUMMARYSuper high dense cell design for low RDS(ON).RDS(ON) (m) TypVDSS IDRugged and reliable.100V 36A 17 @ VGS=10VTO-252 and TO-251 Package.GGSSSTU SERIESSTD SERIES( )TO - 252AA D- PAK ( )TO - 251 I - PAK(T
