All Transistors. ST26025A Datasheet



ST26025A Datasheet and Replacement


   Type Designator: ST26025A
   SMD Transistor Code: 26025A
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 160 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Collector-Emitter Voltage |Vce|: 100 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 20 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Collector Capacitance (Cc): 600 pF
   Forward Current Transfer Ratio (hFE), MIN: 750
   Noise Figure, dB: -
   Package: TO3


 ST26025A Substitution

   - BJT ⓘ Cross-Reference Search



ST26025A Datasheet (PDF)

 ..1. Size:160K  st
 st26025a.pdf pdf_icon

ST26025A

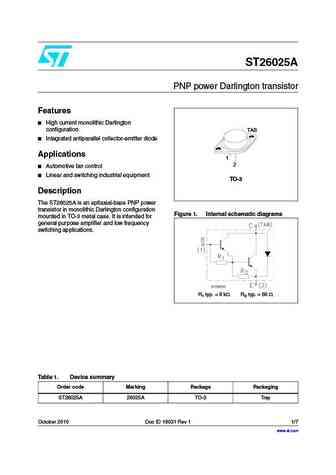

ST26025APNP power Darlington transistorFeatures High current monolithic Darlington configuration TAB Integrated antiparallel collector-emitter diodeApplications12 Automotive fan control Linear and switching industrial equipmentTO-3DescriptionThe ST26025A is an epitaxial-base PNP power transistor in monolithic Darlington configuration Figure 1. Internal
