KCX491A Datasheet and Replacement


   Type Designator: KCX491A
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 1 W
   Maximum Collector-Base Voltage |Vcb|: 80 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 150 MHz
   Collector Capacitance (Cc): 10 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: SOT89


 KCX491A Substitution

   - BJT ⓘ Cross-Reference Search

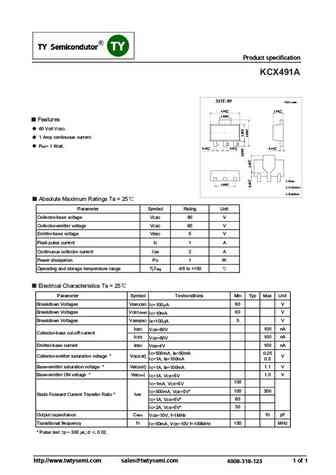

KCX491A Datasheet (PDF)

 ..1. Size:65K  tysemi
 kcx491a.pdf pdf_icon

KCX491A

Product specificationKCX491ASOT-89 Unit: mm+0.14.50+0.1 1.50-0.1-0.11.80+0.1-0.1Features60 Volt VCEO.1 Amp continuous current.Ptot=1 Watt.+0.1 +0.10.48-0.1 0.53+0.1 0.44-0.1-0.11. Base3.00+0.1-0.12. Collector3. EmiitterAbsolute Maximum Ratings Ta = 25Parameter Symbol Rating UnitCollector-base voltage VCBO 80 VCollector-emitter voltage VCEO 60 VEmi
