BUY80SMD Datasheet and Replacement


   Type Designator: BUY80SMD
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 20 W
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Collector Current |Ic max|: 5 A
   Transition Frequency (ft): 60 MHz
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -
   Package: TO276AB


 BUY80SMD Substitution

   - BJT ⓘ Cross-Reference Search

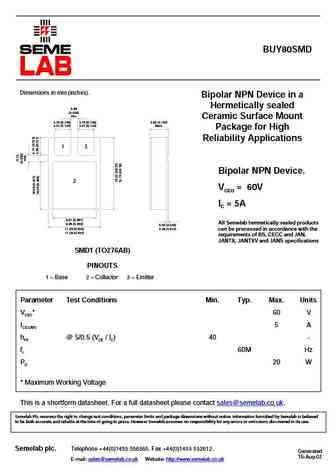

BUY80SMD Datasheet (PDF)

 ..1. Size:10K  semelab
 buy80smd.pdf pdf_icon

BUY80SMD

BUY80SMDDimensions in mm (inches). Bipolar NPN Device in a Hermetically sealed 0.89(0.035)min.Ceramic Surface Mount 3.70 (0.146) 3.70 (0.146) 3.60 (0.142)3.41 (0.134) 3.41 (0.134) Max.Package for High Reliability Applications 1 3Bipolar NPN Device. 2VCEO = 60V IC = 5A 9.67 (0.381)All Semelab hermetically sealed products 9.38 (0.369)0.50 (0.020)0.26 (0.
