TFN5094 Datasheet and Replacement


   Type Designator: TFN5094
   SMD Transistor Code: TE
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.15 W
   Maximum Collector-Base Voltage |Vcb|: 18 V
   Maximum Collector-Emitter Voltage |Vce|: 10 V
   Maximum Emitter-Base Voltage |Veb|: 2.5 V
   Maximum Collector Current |Ic max|: 0.08 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 9000 MHz
   Collector Capacitance (Cc): 0.7 pF
   Forward Current Transfer Ratio (hFE), MIN: 52
   Noise Figure, dB: -
   Package: SOT23


 TFN5094 Substitution

   - BJT ⓘ Cross-Reference Search



TFN5094 Datasheet (PDF)

 ..1. Size:141K  tinfar
 tfn5094.pdf pdf_icon

TFN5094

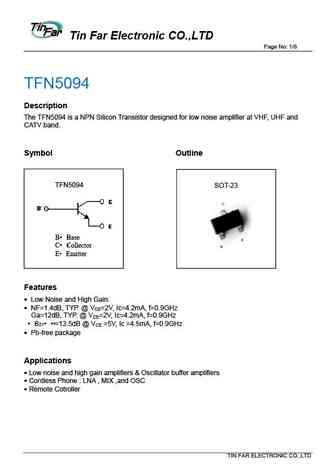

Tin Far Electronic CO.,LTDPage No: 1/8TFN5094 Description The TFN5094 is a NPN Silicon Transistor designed for low noise amplifier at VHF, UHF and CATV band. Symbol OutlineTFN5094 SOT-23 BBase CCollector EEmitter Features Low Noise and High Gain: NF=1.4dB, TYP. @ VCE=2V, Ic=4.2mA, f=0.9GHz Ga=12dB, TYP. @ VCE=2V, Ic=4.2mA, f=0.9GHzS212 =13.
