H1609 Datasheet and Replacement


   Type Designator: H1609
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 1.25 W
   Maximum Collector-Base Voltage |Vcb|: 160 V
   Maximum Collector-Emitter Voltage |Vce|: 160 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 140(TYP) MHz
   Collector Capacitance (Cc): 3.8 pF
   Forward Current Transfer Ratio (hFE), MIN: 60
   Noise Figure, dB: -
   Package: TO126ML


 H1609 Substitution

   - BJT ⓘ Cross-Reference Search

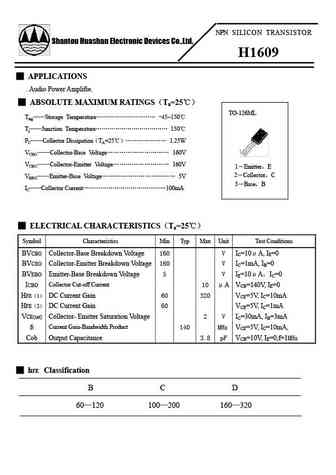

H1609 Datasheet (PDF)

 ..1. Size:110K  shantou-huashan
 h1609.pdf pdf_icon

H1609

NPN S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H1609 APPLICATIONS . Audio Power Amplifie. ABSOLUTE MAXIMUM RATINGSTa=25 TO-126ML TstgStorage Temperature -45~150TjJunction Temperature 150PCCollector DissipationTA=25
