H2274 PDF and Equivalents Search



H2274 PDF Specs and Replacement


   Type Designator: H2274
   Material of Transistor: Si
   Polarity: NPN

Absolute Maximum Ratings


   Maximum Collector Power Dissipation (Pc): 0.6 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics


   Transition Frequency (ft): 120(TYP) MHz
   Collector Capacitance (Cc): 5 pF
   Forward Current Transfer Ratio (hFE), MIN: 60
   Noise Figure, dB: -
   Package: TO92


 H2274 Substitution

   - BJT ⓘ Cross-Reference Search

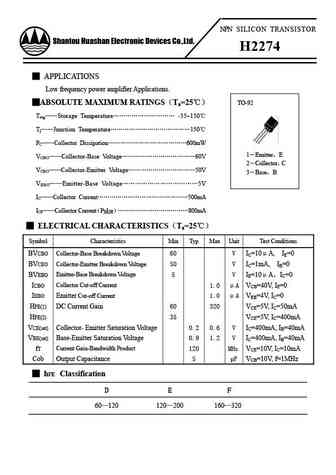

H2274 PDF detailed specifications

 ..1. Size:102K  shantou-huashan
 h2274.pdf pdf_icon

H2274

NPN S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H2274 APPLICATIONS Low frequency power amplifier Applications. ABSOLUTE MAXIMUM RATINGS Ta=25 TO-92 Tstg Storage Temperature -55 150 Tj Junction Temperature 150 PC Collector Dissipation ... See More ⇒
