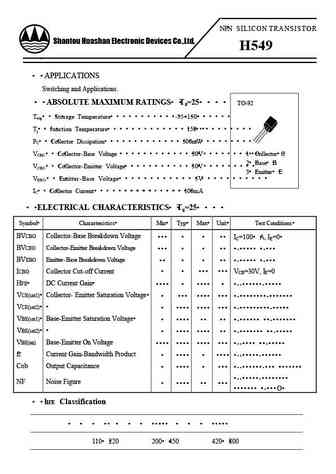

H549 PDF and Equivalents Search



H549 Specs and Replacement

   Type Designator: H549
   Material of Transistor: Si
   Polarity: NPN

Absolute Maximum Ratings

   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

   Transition Frequency (ft): 300(TYP) MHz
   Collector Capacitance (Cc): 2.5 pF
   Forward Current Transfer Ratio (hFE), MIN: 110
   Noise Figure, dB: -
   Package: TO92
