   Type Designator: SFT8200
   Material of Transistor: Si
   Polarity: PNP

Absolute Maximum Ratings


   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Collector-Emitter Voltage |Vce|: 80 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 200 °C

Electrical Characteristics


   Transition Frequency (ft): 100 MHz
   Collector Capacitance (Cc): 300 pF
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -
   Package: TO5


 SFT8200 Substitution

   - BJT ⓘ Cross-Reference Search

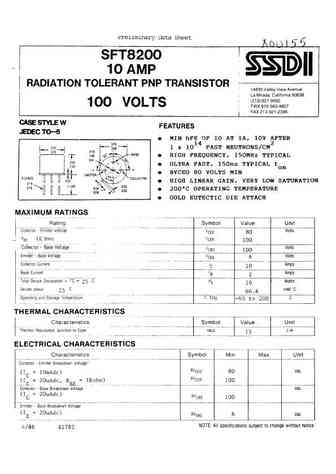

SFT8200 datasheet

 ..1. Size:135K  ssdi
 sft8200.pdf pdf_icon

SFT8200
