All Transistors. 2N2696CSM Datasheet



2N2696CSM Datasheet and Replacement


   Type Designator: 2N2696CSM
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.36 W
   Maximum Collector-Emitter Voltage |Vce|: 25 V
   Maximum Collector Current |Ic max|: 0.5 A
   Transition Frequency (ft): 100 MHz
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -
   Package: LCC1


 2N2696CSM Substitution

   - BJT ⓘ Cross-Reference Search



2N2696CSM Datasheet (PDF)

 ..1. Size:11K  semelab
 2n2696csm.pdf pdf_icon

2N2696CSM

2N2696CSMDimensions in mm (inches). Bipolar PNP Device in a 0.51 0.10 Hermetically sealed LCC1 (0.02 0.004) 0.31rad.(0.012) Ceramic Surface Mount 3Package for High Reliability Applications 211.91 0.10(0.075 0.004)A0.31rad.Bipolar PNP Device. (0.012)3.05 0.13(0.12 0.005)1.40(0.055)1.02 0.10max.VCEO = 25V A =(0.04 0.004

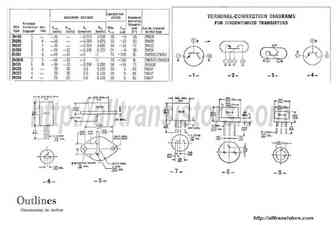

 9.1. Size:319K  rca
