CHT127ZGP Datasheet and Replacement


   Type Designator: CHT127ZGP
   SMD Transistor Code: ZBP
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 2 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Collector-Emitter Voltage |Vce|: 100 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 4 MHz
   Collector Capacitance (Cc): 300 pF
   Forward Current Transfer Ratio (hFE), MIN: 1000
   Noise Figure, dB: -
   Package: SOT-223


 CHT127ZGP Substitution

   - BJT ⓘ Cross-Reference Search



CHT127ZGP Datasheet (PDF)

 ..1. Size:146K  chenmko
 cht127zgp.pdf pdf_icon

CHT127ZGP

CHENMKO ENTERPRISE CO.,LTDCHT127ZGPSURFACE MOUNT PNP SILICON Transistor VOLTAGE 100 Volts CURRENT 5 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SC-73/SOT-223FEATURE* Small flat package. ( SC-73/SOT-223 )1.65+0.156.50+0.20* Suitable for high packing density.0.90+0.052.0+0.33.00+0.10* High saturation current

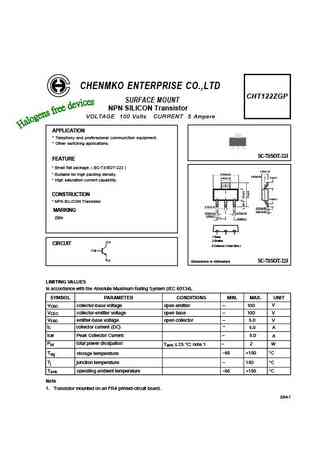

 9.1. Size:143K  chenmko
 cht122zgp.pdf pdf_icon

CHT127ZGP

CHENMKO ENTERPRISE CO.,LTDCHT122ZGPSURFACE MOUNT NPN SILICON Transistor VOLTAGE 100 Volts CURRENT 5 AmpereAPPLICATION* Telephony and proferssional communction equipment.* Other switching applications.SC-73/SOT-223FEATURE* Small flat package. ( SC-73/SOT-223 )1.65+0.156.50+0.20* Suitable for high packing density.0.90+0.052.0+0.33.00+0.10* High saturation current
