All Transistors. CHT856BGP Datasheet



CHT856BGP Datasheet, Equivalent, Cross Reference Search

Type Designator: CHT856BGP

SMD Transistor Code: J10_J11_J12

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 80 V

Maximum Collector-Emitter Voltage |Vce|: 65 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 3 pF

Forward Current Transfer Ratio (hFE), MIN: 125

Noise Figure, dB: -

Package: SOT-23

CHT856BGP Transistor Equivalent Substitute - Cross-Reference Search



CHT856BGP Datasheet (PDF)

1.1. cht856bgp.pdf Size:126K _upd

CHT856BGP
CHT856BGP

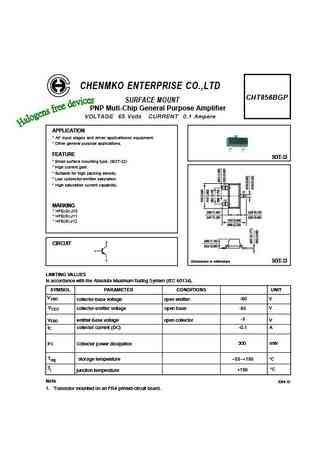

CHENMKO ENTERPRISE CO.,LTD CHT856BGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 65 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SOT-23 * Small surface mounting type. (SOT-23) * High current gain. * Suitable for high packing density. * Low colloector-emitter saturation.

3.1. cht856bwgp.pdf Size:207K _upd

CHT856BGP
CHT856BGP

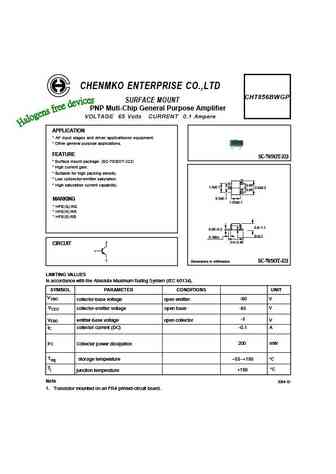

CHENMKO ENTERPRISE CO.,LTD CHT856BWGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 65 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SC-70/SOT-323 * Surface mount package. (SC-70/SOT-323) * High current gain. * Suitable for high packing density. * Low colloector-emitter satu

 5.1. cht8550gp.pdf Size:67K _upd

CHT856BGP
CHT856BGP

CHENMKO ENTERPRISE CO.,LTD CHT8550GP SURFACE MOUNT EPITAXIAL Transistor VOLTAGE 20 Volts CURRENT 700 mAmpere FEATURE * Small surface mounting type. (SOT-23) * High DC current . SOT-23 CONSTRUCTION (1) * PNP transistors in one package. (3) (2) ( ) ( ) .055 1.40 .028 0.70 ( ) ( ) .047 1.20 .020 0.50 ( ) .103 2.64 .086 (2.20) ( ) .045 1.15 C (3) CIRCUIT ( ) .033 0.85 (1

5.2. cht858bwgp.pdf Size:183K _upd

CHT856BGP
CHT856BGP

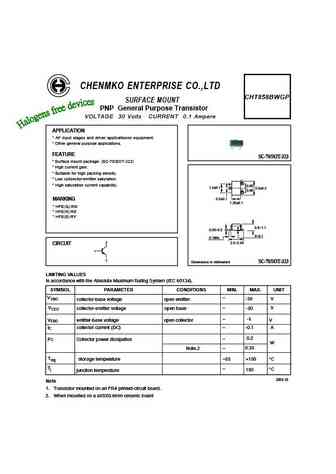

CHENMKO ENTERPRISE CO.,LTD CHT858BWGP SURFACE MOUNT PNP General Purpose Transistor VOLTAGE 30 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SC-70/SOT-323 * Surface mount package. (SC-70/SOT-323) * High current gain. * Suitable for high packing density. * Low colloector-emitter saturation.

 5.3. cht857bwgp.pdf Size:208K _upd

CHT856BGP
CHT856BGP

CHENMKO ENTERPRISE CO.,LTD CHT857BWGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 45 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SC-70/SOT-323 * Surface mount package. (SC-70/SOT-323) * High current gain. * Suitable for high packing density. * Low colloector-emitter satu

5.4. cht857bvgp.pdf Size:129K _upd

CHT856BGP
CHT856BGP

CHENMKO ENTERPRISE CO.,LTD CHT857BVGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 45 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE * Small surface mounting type. (SOT-563) SOT-563 * High current gain. * Suitable for high packing density. * Low colloector-emitter saturation.

 5.5. cht857btgp.pdf Size:129K _upd

CHT856BGP
CHT856BGP

CHENMKO ENTERPRISE CO.,LTD CHT857BTGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 45 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SC-75/SOT-416 * Small surface mounting type. (SC-75/SOT-416) * High current gain. * Suitable for high packing density. 0.1 * Low colloector-e

5.6. cht857bgp.pdf Size:126K _upd

CHT856BGP
CHT856BGP

CHENMKO ENTERPRISE CO.,LTD CHT857BGP SURFACE MOUNT PNP Muti-Chip General Purpose Amplifier VOLTAGE 45 Volts CURRENT 0.1 Ampere APPLICATION * AF input stages and driver applicationon equipment. * Other general purpose applications. FEATURE SOT-23 * Small surface mounting type. (SOT-23) * High current gain. * Suitable for high packing density. * Low colloector-emitter saturation.

Datasheet: CHT817WGP , CHT846BGP , CHT846BWGP , CHT847BTGP , CHT847BVGP , CHT847BWGP , CHT848BWGP , CHT8550GP , TIP31C , CHT856BWGP , CHT857BGP , CHT857BTGP , CHT857BVGP , CHT857BWGP , CHT858BWGP , CHT9013GP , CHT9435ZGP .
