All Transistors. DSA2507 Datasheet



DSA2507 Datasheet and Replacement


   Type Designator: DSA2507
   SMD Transistor Code: B4
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.4 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 20 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 220 MHz
   Collector Capacitance (Cc): 35 pF
   Forward Current Transfer Ratio (hFE), MIN: 160
   Noise Figure, dB: -
   Package: SOT-346


 DSA2507 Substitution

   - BJT ⓘ Cross-Reference Search



DSA2507 Datasheet (PDF)

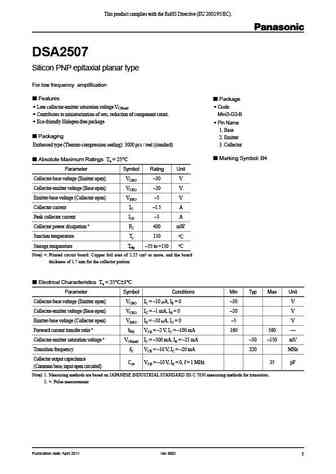

 ..1. Size:383K  panasonic
 dsa2507.pdf pdf_icon

DSA2507

This product complies with the RoHS Directive (EU 2002/95/EC).DSA2507Silicon PNP epitaxial planar typeFor low frequency amplification Features Package Low collector-emitter saturation voltage VCE(sat) Code Contributes to miniaturization of sets, reduction of component count. Mini3-G3-B Eco-friendly Halogen-free package Pin Name 1. Base Packaging
