DSA7102 Datasheet. Specs and Replacement
Type Designator: DSA7102 📄📄
SMD Transistor Code: 4D
Material of Transistor: Si
Polarity: PNP
Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 12 pF
Forward Current Transfer Ratio (hFE), MIN: 120
Package: SOT-89
DSA7102 Substitution
- BJT ⓘ Cross-Reference Search
DSA7102 datasheet

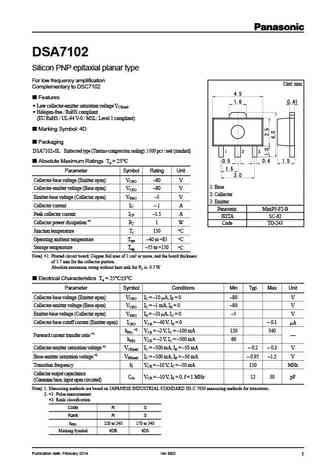

DSA7102 Silicon PNP epitaxial planar type For low frequency amplification Unit mm Complementary to DSC7102 Features Low collector-emitter saturation voltage VCE(sat) Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL Level 1 compliant) Marking Symbol 4D Packaging DSA7102 0L Embossed type (Thermo-compression sealing) 1 000 pcs / reel (standard) Abs... See More ⇒

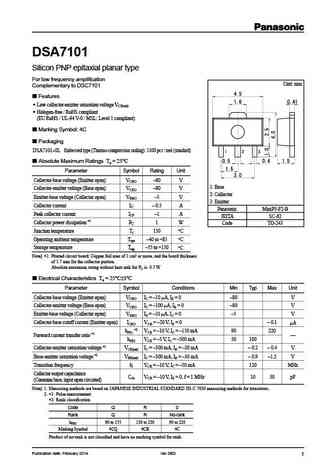

DSA7101 Silicon PNP epitaxial planar type For low frequency amplification Unit mm Complementary to DSC7101 Features Low collector-emitter saturation voltage VCE(sat) Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL Level 1 compliant) Marking Symbol 4C Packaging DSA7101 0L Embossed type (Thermo-compression sealing) 1 000 pcs / reel (standard) Abs... See More ⇒
Detailed specifications: DSA4G01, DSA5001, DSA5002, DSA5005, DSA5G01, DSA7003, DSA7004, DSA7101, TIP122, DSA7503, DSA7504, DSA7506, DSA7U01, DSA8003, DSA8004, DSA8101, DSA8102
