DSA9G01 Datasheet and Replacement


   Type Designator: DSA9G01
   SMD Transistor Code: A4
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.125 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 20 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.03 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 150 MHz
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -
   Package: SSMINI3-F3-B


 DSA9G01 Substitution

   - BJT ⓘ Cross-Reference Search



DSA9G01 Datasheet (PDF)

 ..1. Size:472K  panasonic
 dsa9g01.pdf pdf_icon

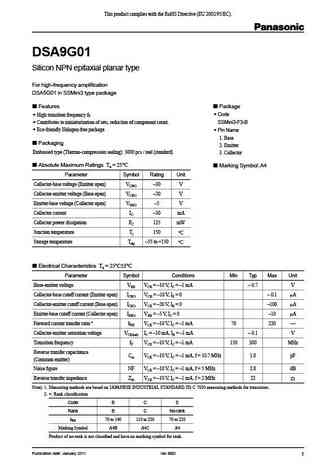

DSA9G01

This product complies with the RoHS Directive (EU 2002/95/EC).DSA9G01Silicon NPN epitaxial planar typeFor high-frequency amplificationDSA5G01 in SSMini3 type package Features Package High transition frequency fT Code Contributes to miniaturization of sets, reduction of component count. SSMini3-F3-B Eco-friendly Halogen-free package Pin Name 1. Base
