RT5N136C Datasheet and Replacement
Type Designator: RT5N136C
SMD Transistor Code: N6
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 1 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 0.1
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN: 56
Noise Figure, dB: -
Package: SC-59
RT5N136C Substitution
RT5N136C Datasheet (PDF)
rt5n136c.pdf

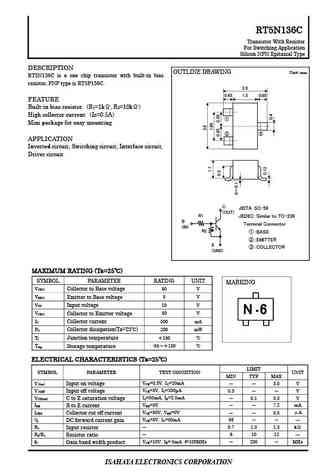

RT5N136C Transistor With ResistorFor Switching ApplicationSilicon NPN Epitaxial TypeDESCRIPTION OUTLINE DRAWING Unit: mm RT5N136C is a one chip transistor with built-in bias resistor, PNP type is RT5P136C. 2.8 0.65 1.5 0.65 FEATURE Built-in bias resistor R =1k, R =10k 1 2High collector current Ic=0.5A Mini package for easy mounting
